Main features :
Quad band transmit and receiver
Cross Band Repeat

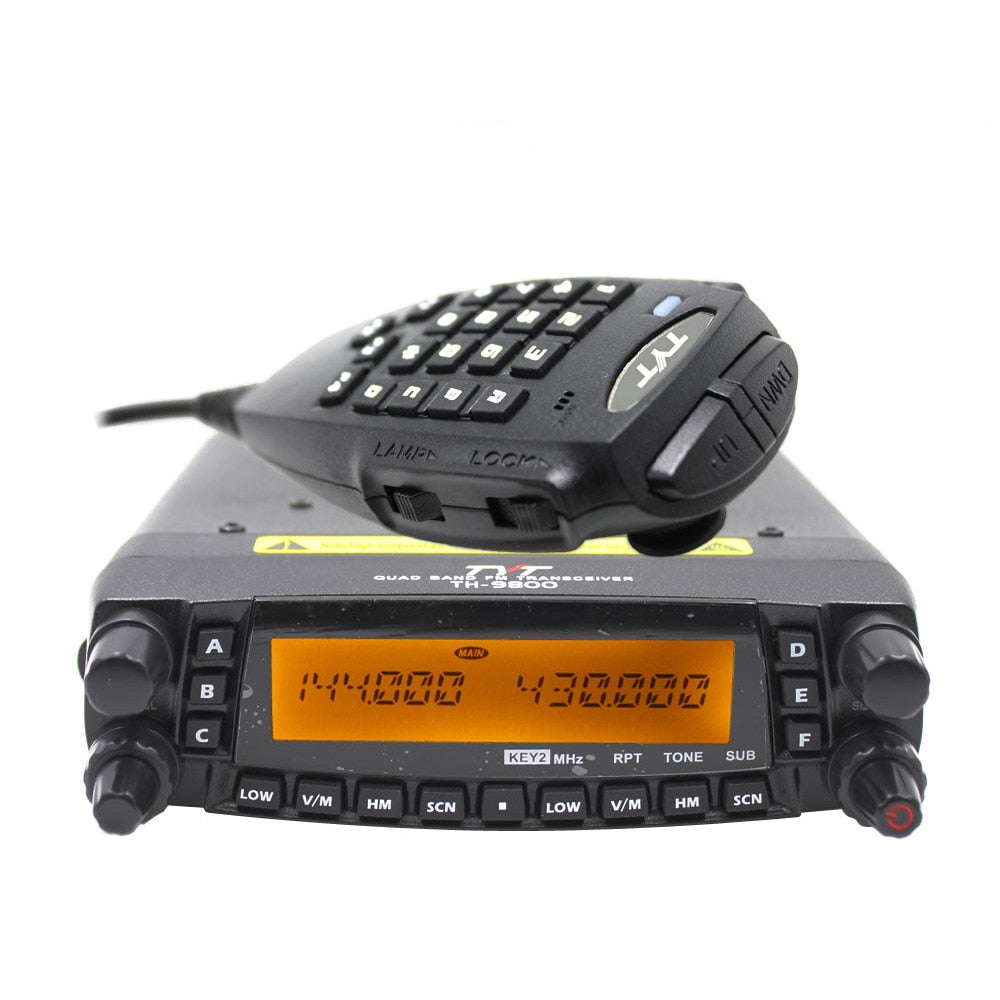

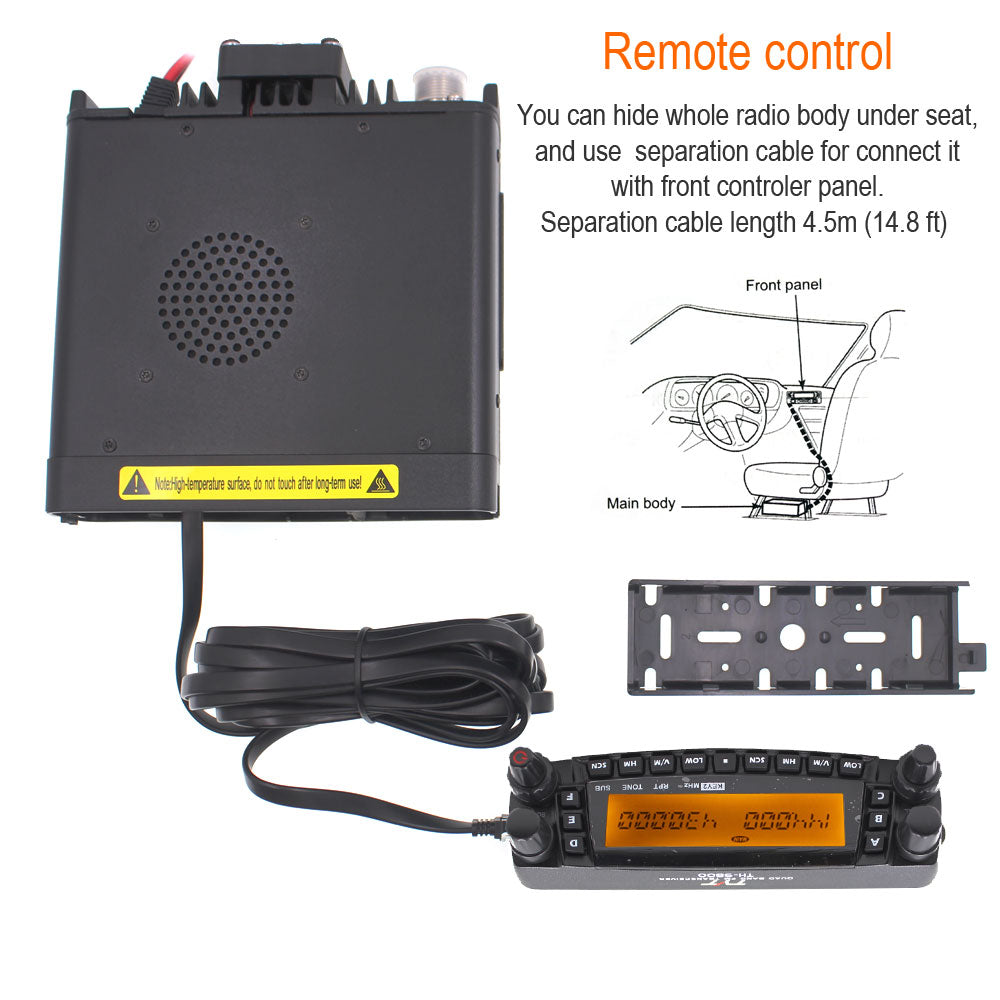

Separately Front Panel
809 Memory Channels

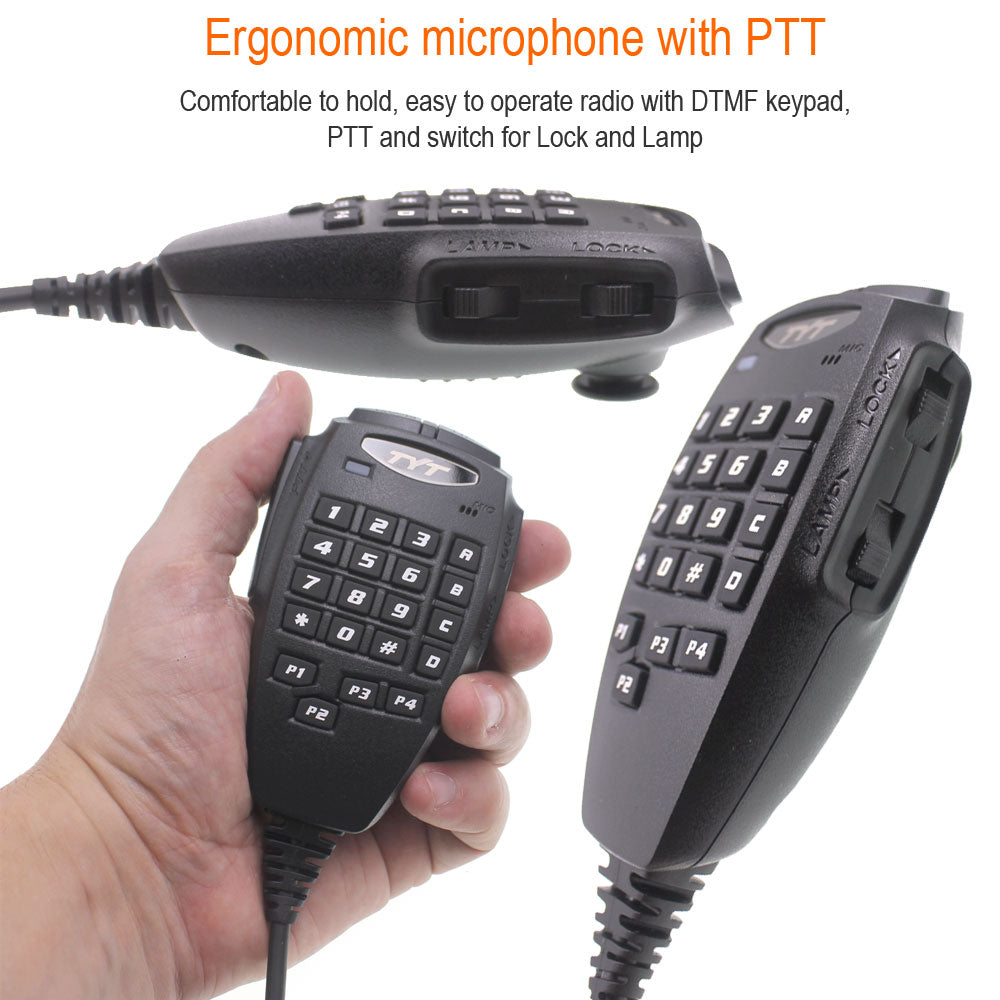

DTMF Microphone
Fm Radio 108-135.995MHz
High/Low Output Power Levels
Reverse Frequency Selection
Dual (V/U) Squelch Set Levels
Dual Repeater Offsets Select-Able
Multi Scanning
Repeater Offset
Keypad Lock Function
Channel Name Editing
Ctcss/Dcs Encode/Decode
|
Specification |
|
|

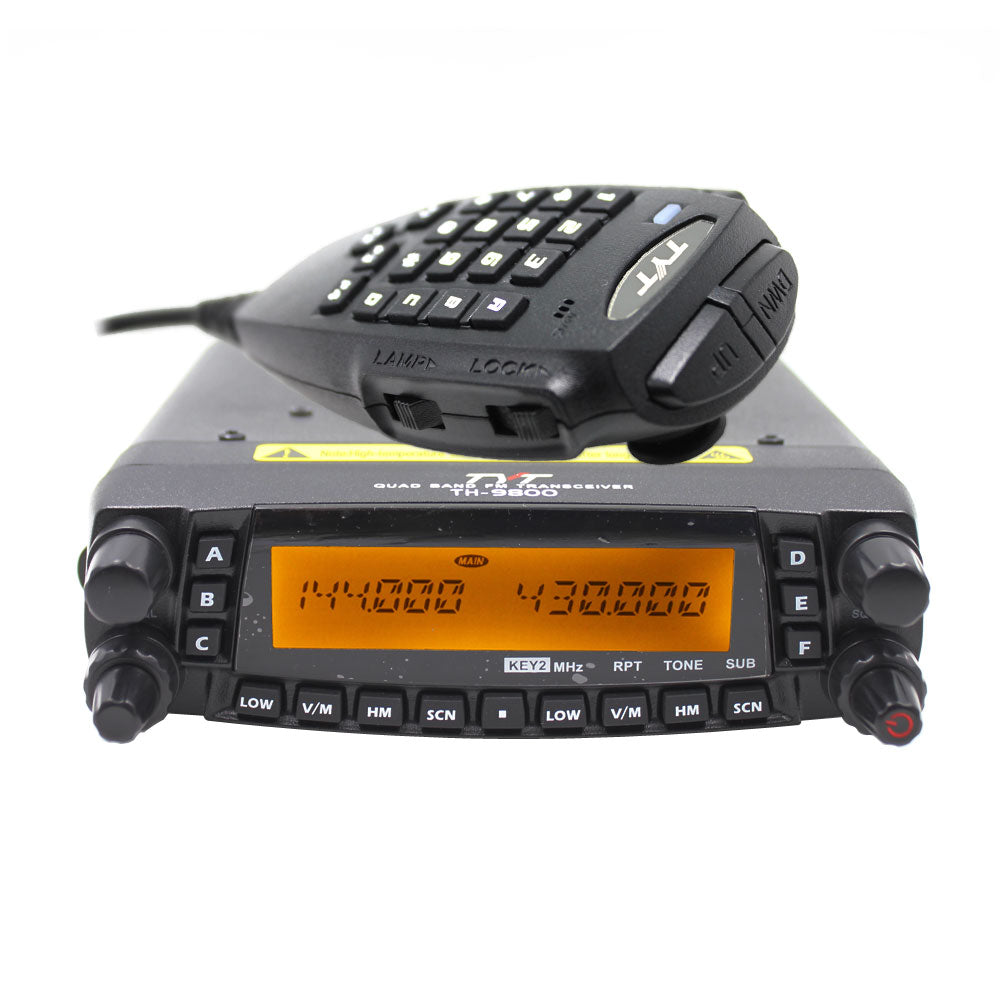

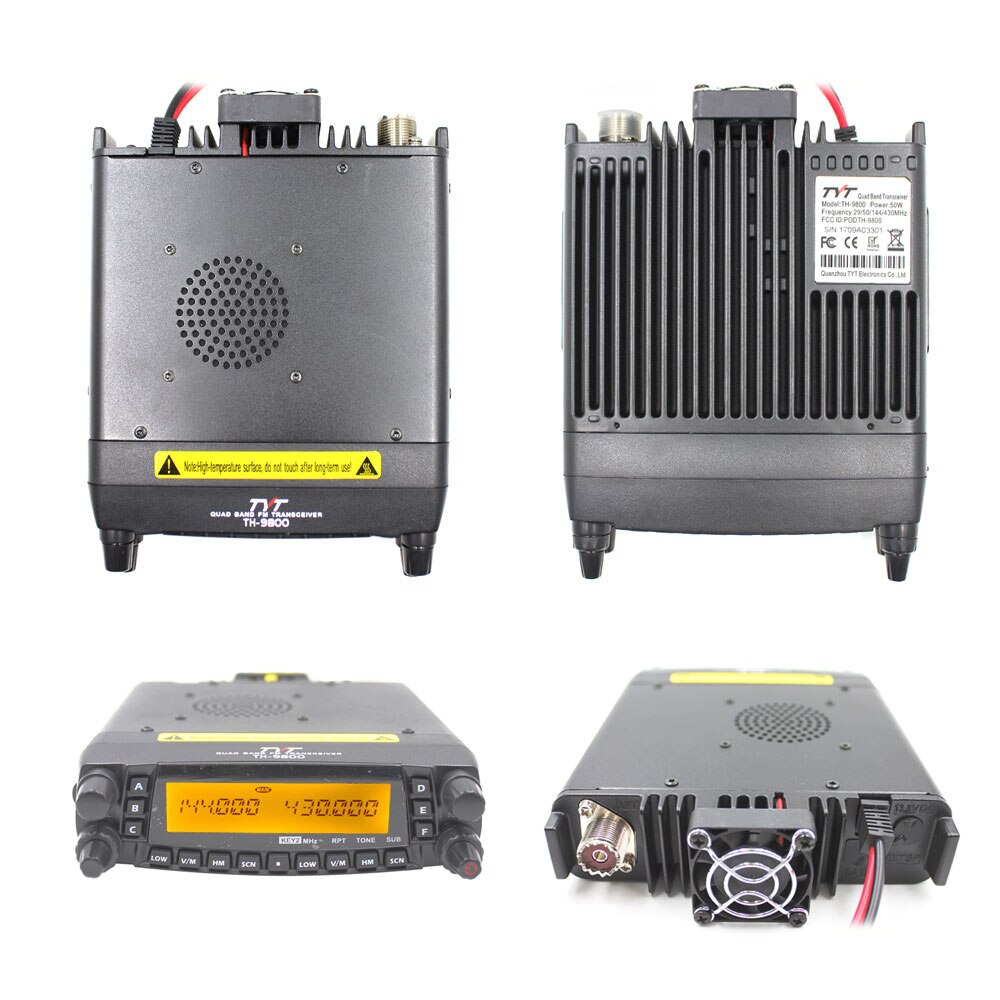

Model |
TH-9800 |
|
Frequency Range |
RX only:108-135.995mhz,320-512mhz, |
|
TX(FM): 26-33mhz,47-54mhz,136-174MHZ , |
|
|
Channel Capacity |
809 Channels |
|
Channel Spacing |
2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz |
|
Modes of emission |
F3 |
|
Antenna Impedance |
50 Ohms,unbalanced (Antenna Duplexer built-in) |
|
Frequency Stability |
plusmn5PPM@-140℉~+140℉(-10℃~+60℃) |
|
Operating Voltage |
-4℉~+140℉(-20℃~+60℃) |
|
Operating Temperature Range |
13.8VDC (plusmn15%),Negative ground |
|
Current Consumption(Approx) |
RX:0.5A(Squelched) |
|
TX:8.0A(50/430MHZ),8.5A(29/144MHZ) |
|
|
Case size(WtimesHtimesD) |
140*41.5*168 mm (w/o knobs & connectors) |
|
Weight |
1.2kg |
|
Transmitter |
|
|
output power |
50/20/10/5W(29/50/144MHZ),40/20/10/5W(430MHZ) |
|
Modulation Type |
Variable Reactance |
|
Maximum Deviation |
Better than -60dB(29MHZ: Better than -50dB) |
|
Modulation Distortion |
Less than 3% |
|
Microphone Impedance |
2kOmega |
|
Receiver |
|
|
Circuit Type |
Double-conversion super-heterodyne |
|
Intermediate Frequency |
49.95MHz/450KHz (left band) |
|
38.85MHz/450KHz (right band) |
|
|
Sensitivity (for 12dB SINAD) |
Better than 0.2muV |
|
Squelch Sensitivity |
Better than 0.16muV |
|
Selectivity(-6dB/-60dB) |
12KHz/30 KHz |
|
Maximum AF output |
2W@8Omega for 5% THD |
|
AF output Impedance |
4-16Omega |
