SPECIFICATIONS

Check the Output Power of your transceiver :

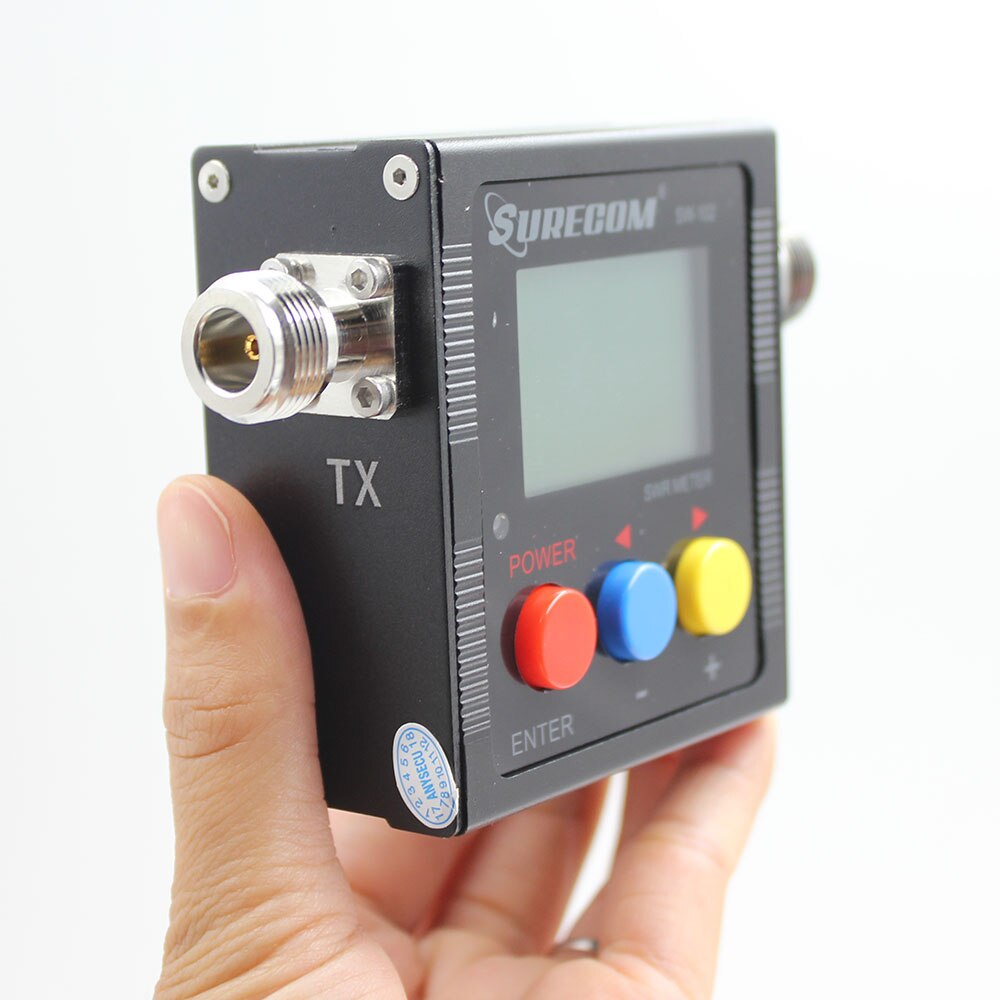

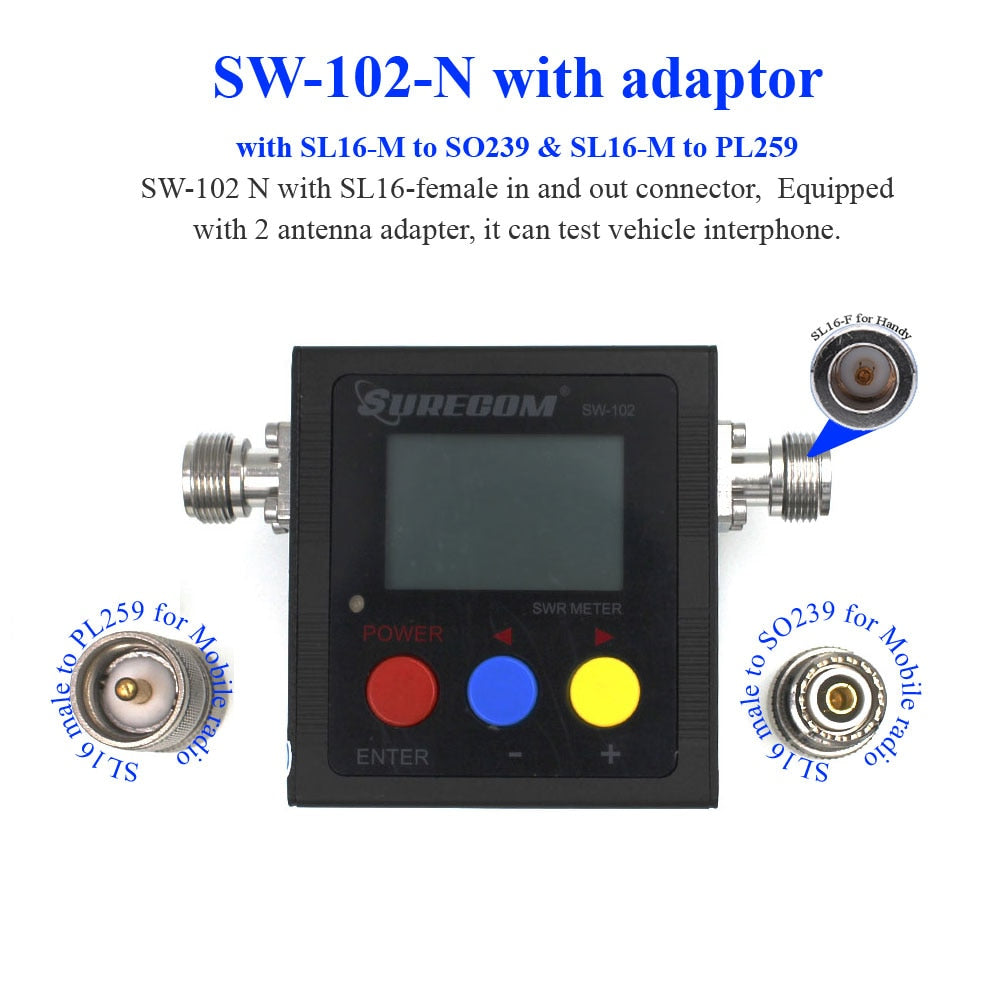

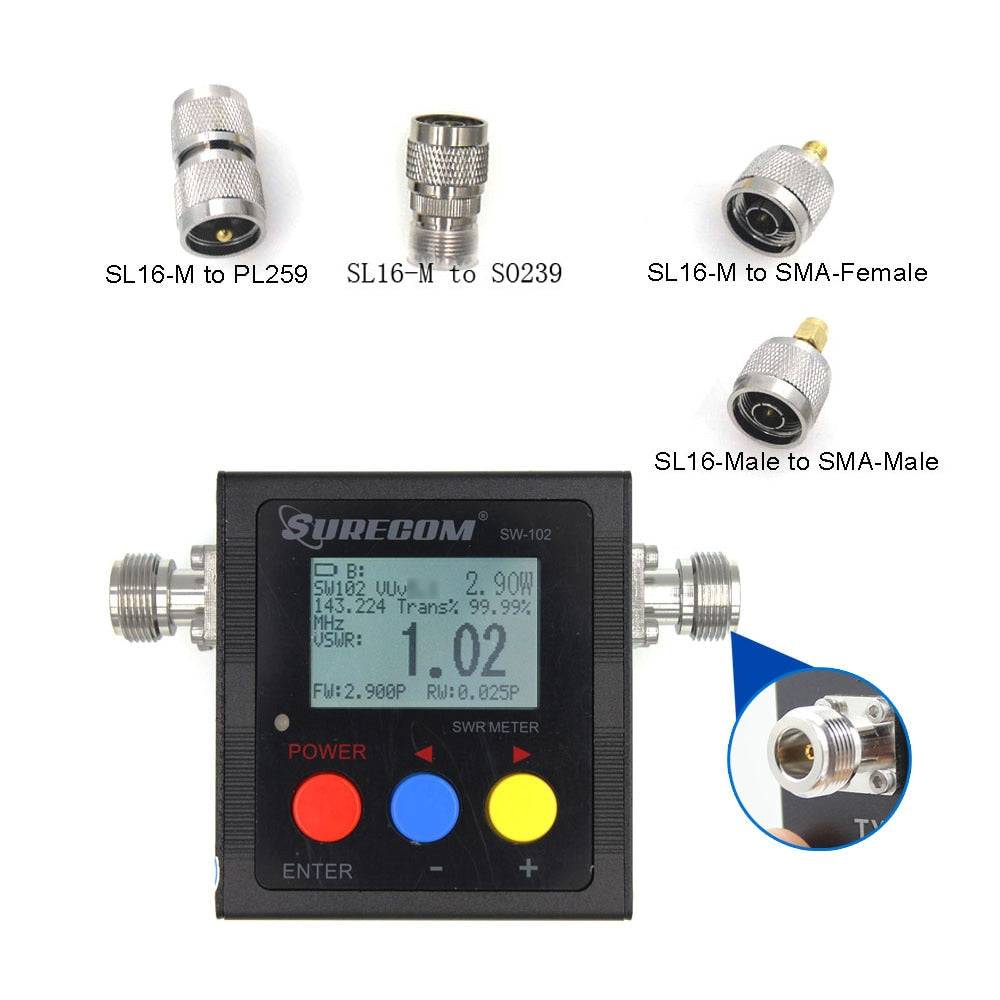

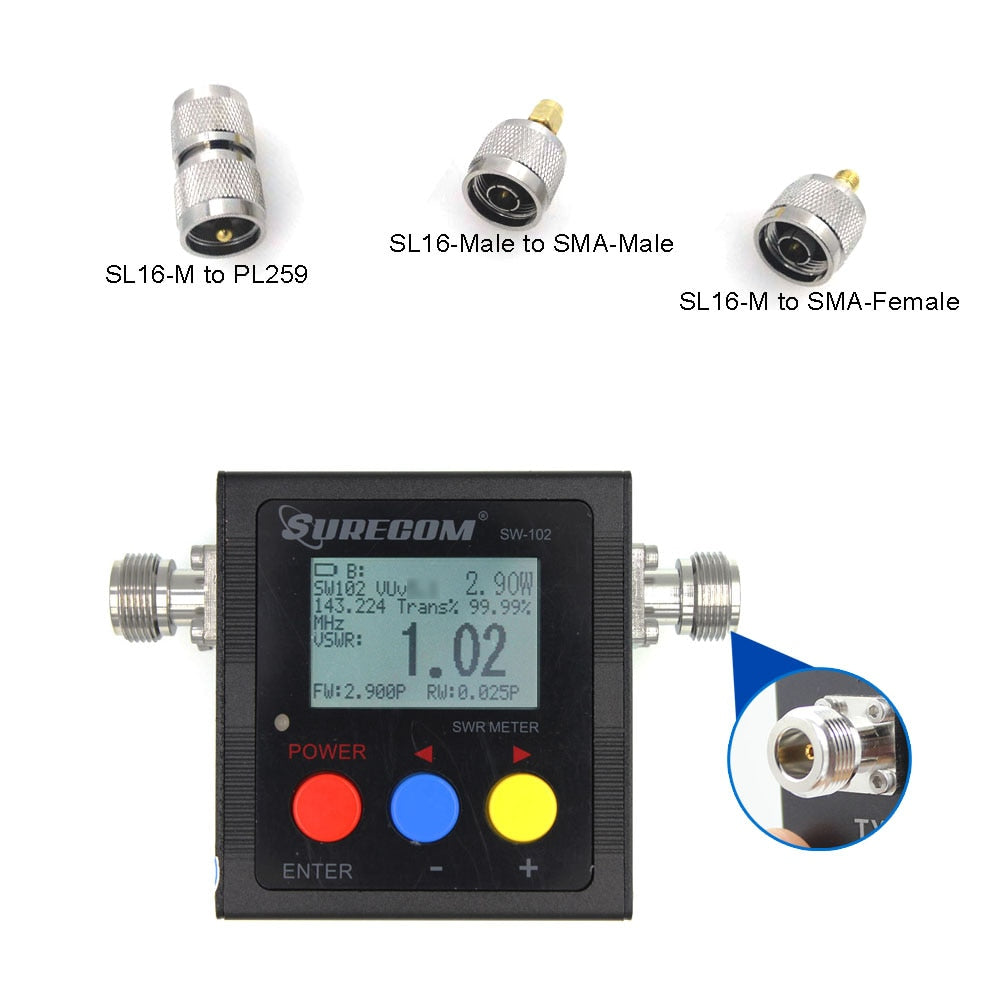

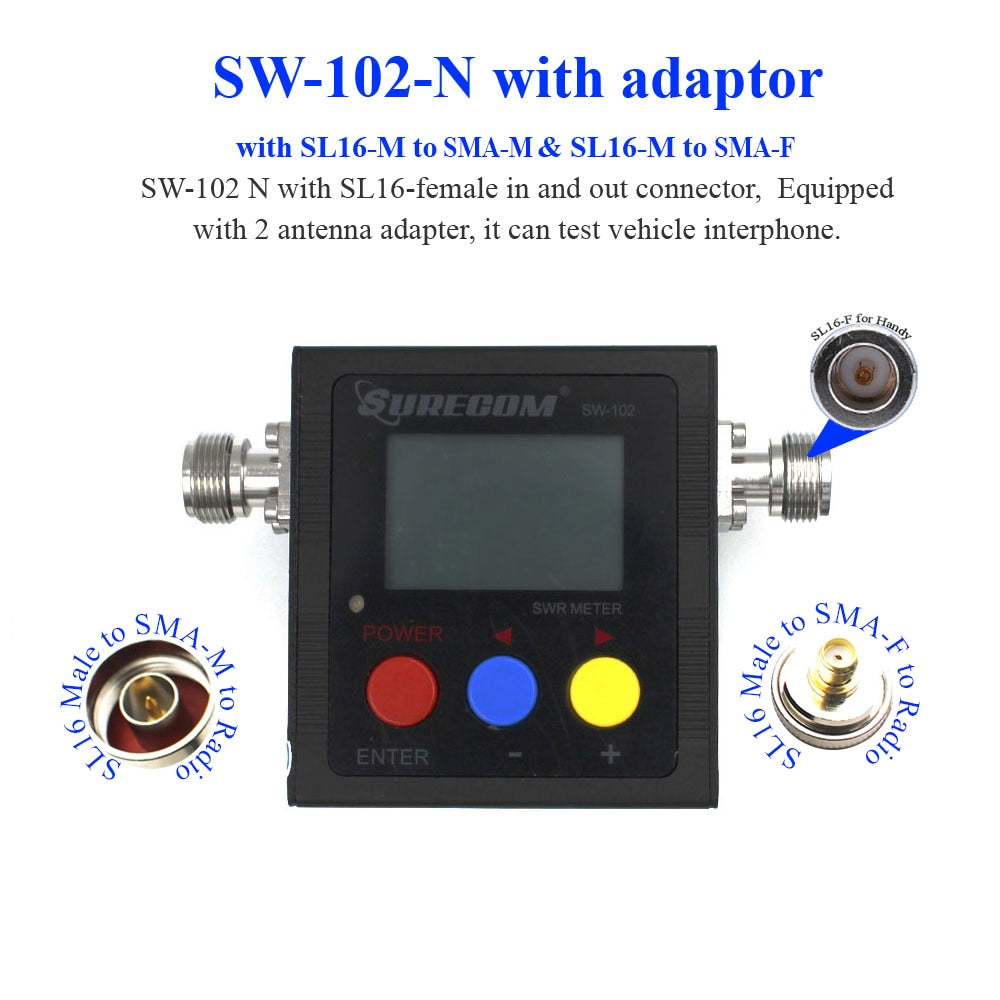

Connect to "TX" on Radio output and dummy Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.

Check the S.W.R. of your Antenna :
Connect to "TX" on Radio output and Antenna to "ANT". Proper adaptor/cable is required if your device has different type of connectors.

Note: Damage your radio when No Connect Antenna and Dummy

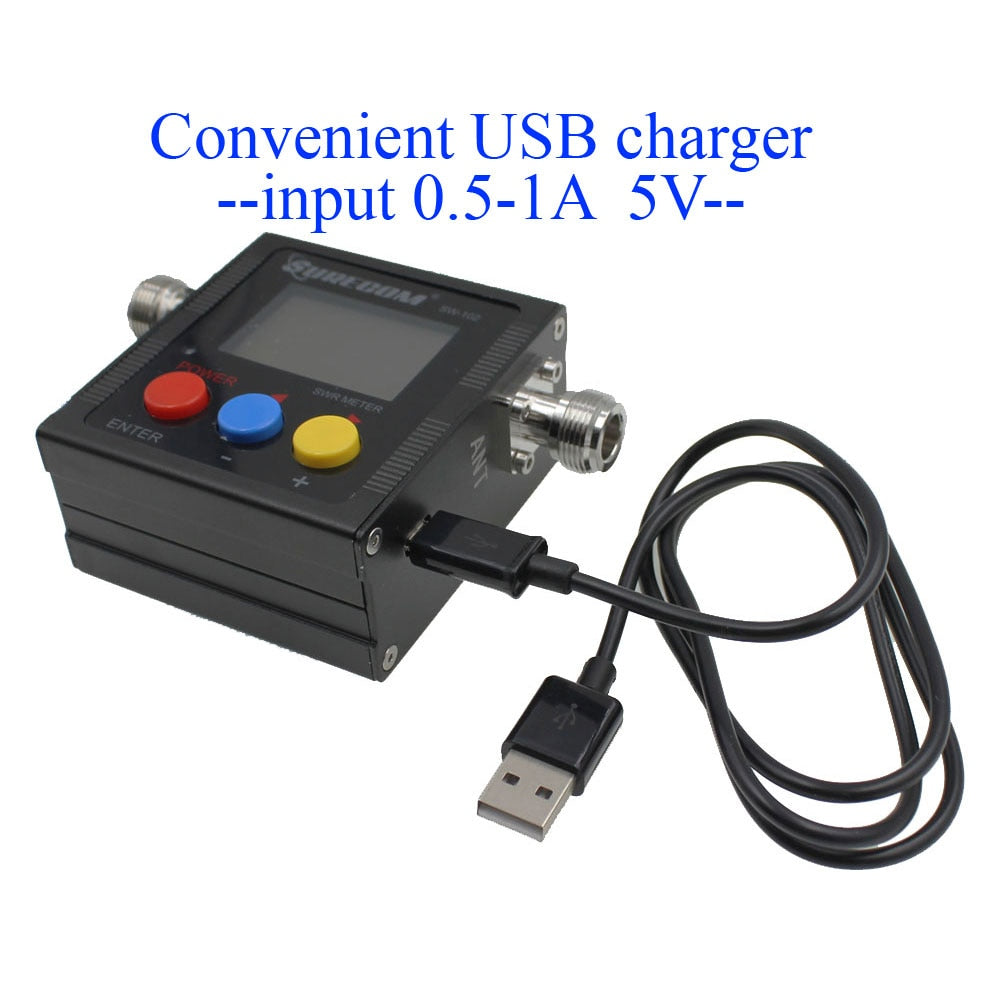

Power ON/OFF
Press 2 second the [Red button] to power on or power off

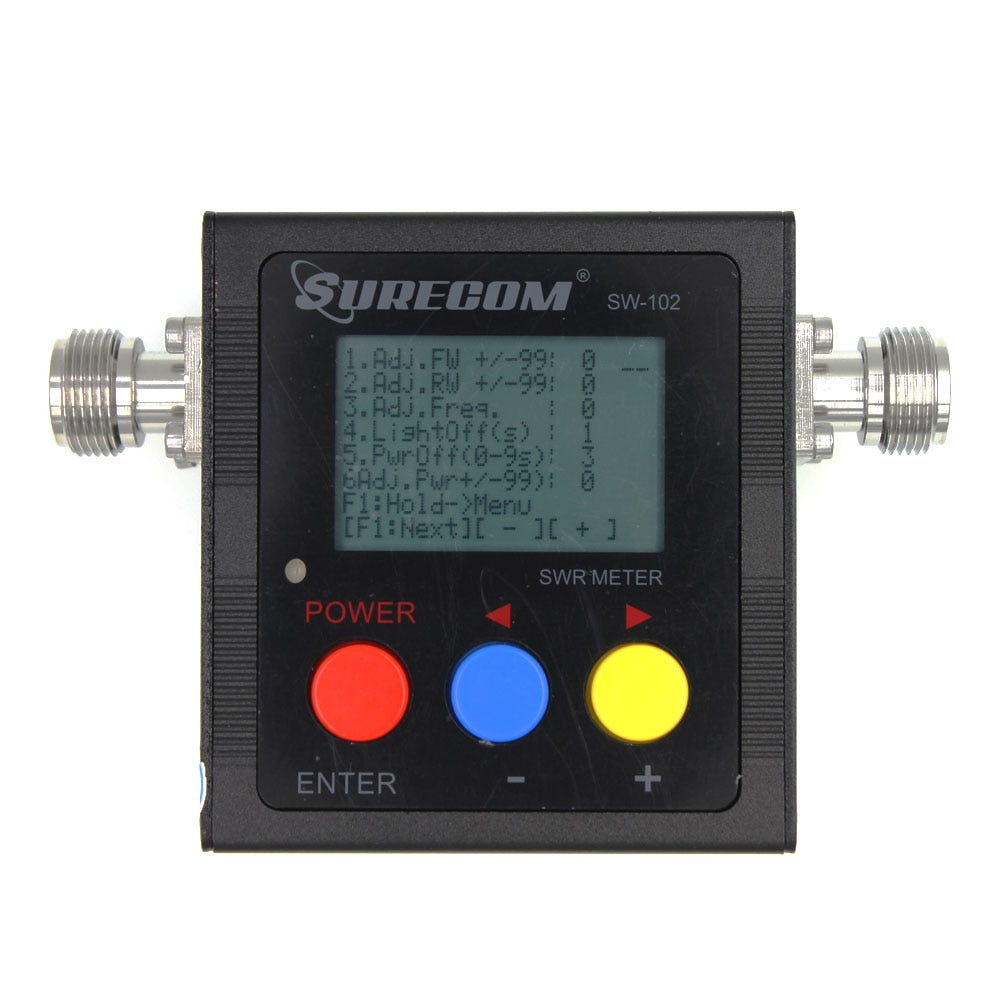

Funtion menu display:
1) Adj. RF Forward %
2) Adj. RF reward %
3) Adj. frequency counter time base.
4) Adj. RF Power %
5) Adj LCD dim of light
6)Adj. power off time
7)Adj. Powe test mode ( 0 for 1-10W hand held radio , 5 for Mobile Radio 10-100W)

Setting Memory SAVE:

1. Press MENU [Blue button]

2. Press F1 [Red button)(Select 1-7 Funtion)

3. Press [Blue button] ( - ), [Yellow button] (+)

4. Press the [Red button ]for 2 seconds

5. Press the [Blue button] to SAVE and EXIT
