SPECIFICATIONS

Product Specifications
Frequency Range:400-480mhz or 126-174Mhz
Channels:200
UHF version Power Output(L/H):H 75W(16A) M 40W(9A) L 20W(6A)
VHF version Power Output(L/H):H 100W(16A) M 450W(9A) L 20W(6A)
Power Supply:13.8V DC±15%

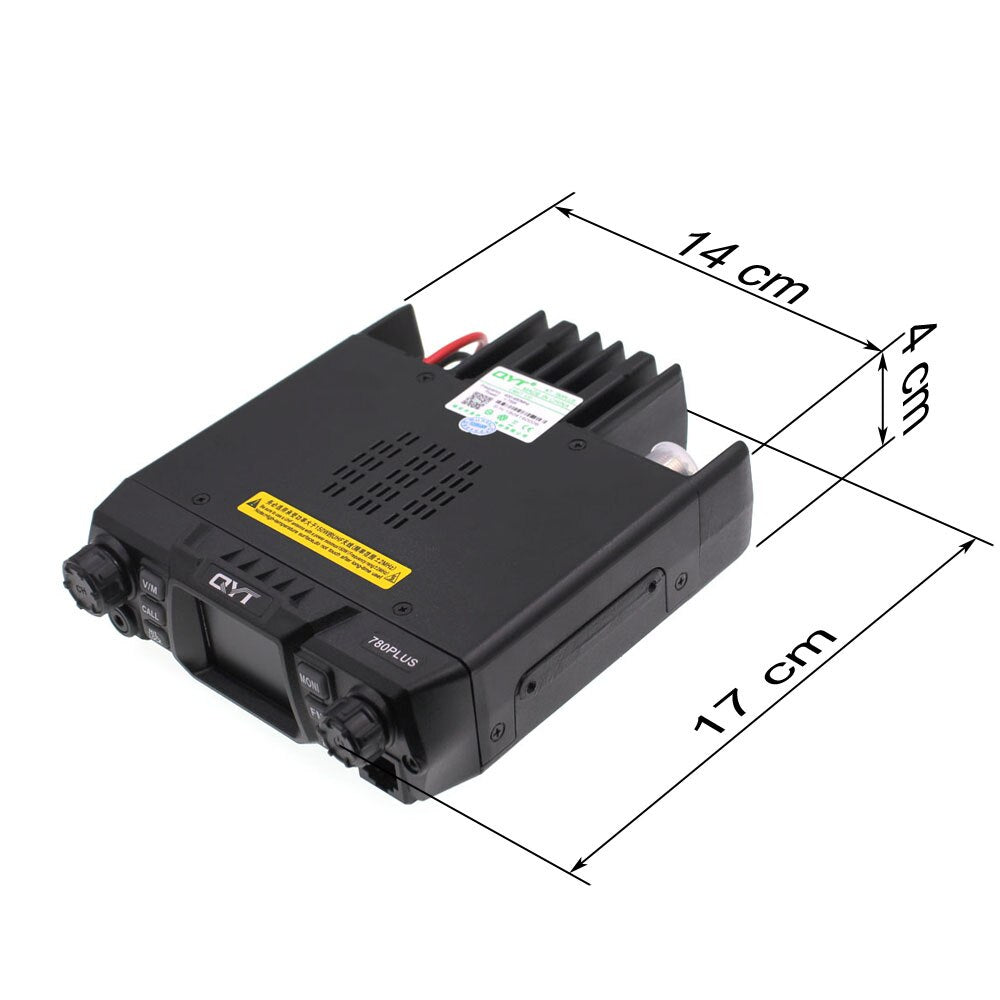

Dimension (H x W x D):140(W)*43(H)*172(D) mm
Weight:1.03kg


Features:
PC Program
DTMF function, 2 tone, 5tone
ANI (Caller ID)
FM Radio
Single-band/Quad-standby
DTMF function, 2 tone, 5tone
Remote stun, remote activate,remote revive
Long distance communication
UHF version Max 75W power output
VHF version Max 100W power output



The Analog Mobile Ham Radio KT-780Plus(VHF) own fashionable appearance, with color LCD screen, is favored by large groups of users on the market. Don't just be attracted by its gorgeous appearance, it also has powerful functions. Optional 12V power supply, 100W output.
Excellent performance in steamer shipping, port programming, working on base and large truck transportation industry.
The QYT KT-780Plus(VHF) features 256 channels on vhf, 200 channels on uhf, with CTCSS and DSC, channels scan and DTMF technology. It includes Lone worker mode, an emergency alarm and VOX capability. Programmable function keys on the console, a hand microphone with programmable keys, a built-in LEDs and a DTMF keypad.
The QYT KT-780Plus is also repeater capable and compatible with all brand analog walkie talkie and mobile ham radios.
Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.
USB Programming Cable to connects your QYT radios to your computer and software to programming your radio!

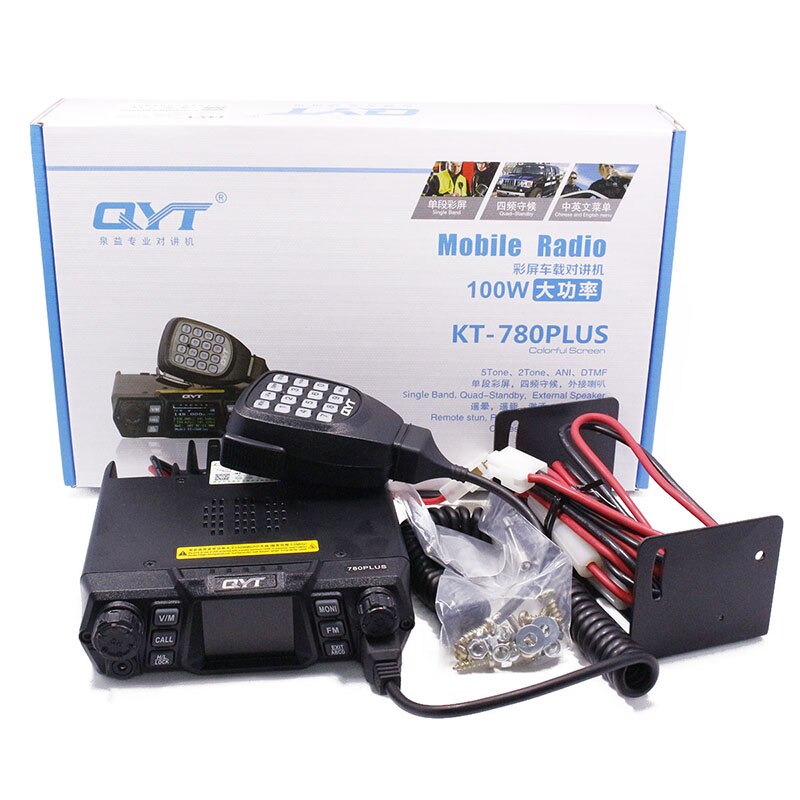

The KT-780Plus(VHF) Kit includes:
Radiostation  x1

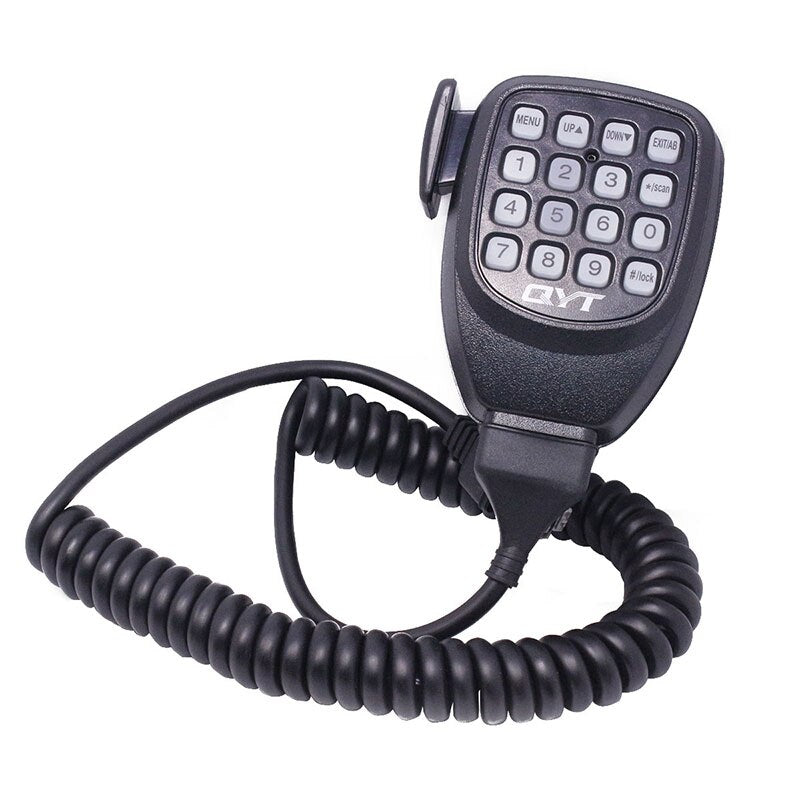

Microphone x1
DC power cable x1
Mobile mounting bracket x1
Mounting hardware x1
User's manual x1
