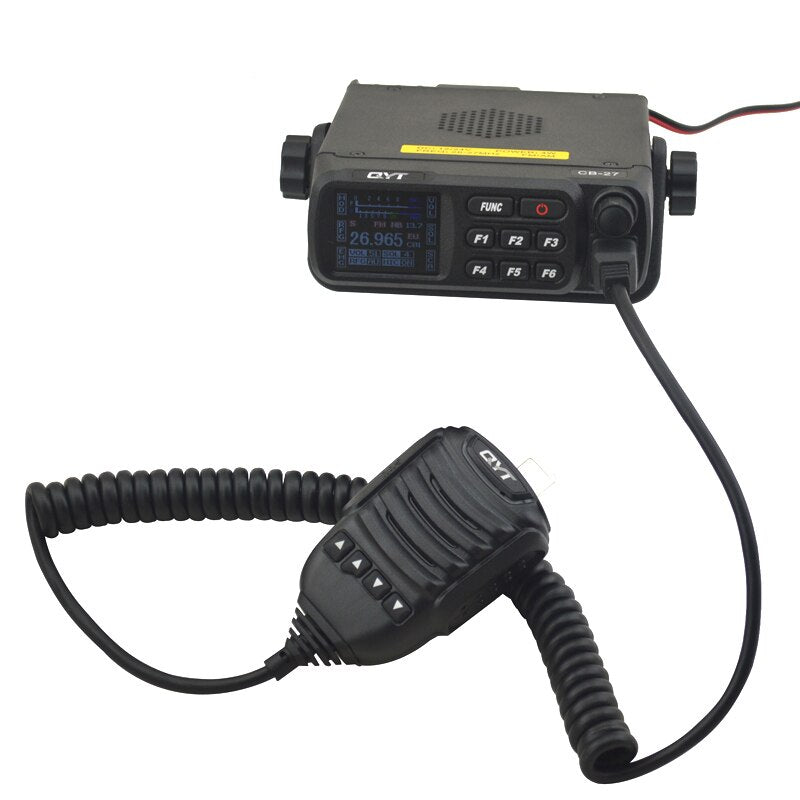

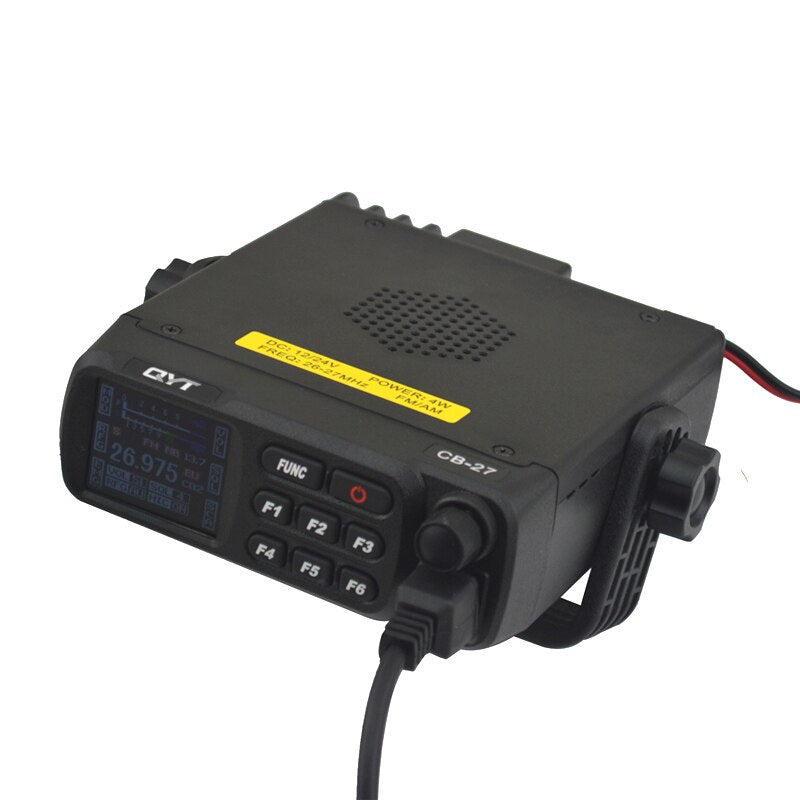

QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver

QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver

$89.00
$89.00
$89.00
Subtotal: $89.00
|<none>

QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver

$89.00
|<none>
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver
QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver

QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver

$89.00
Description
Description
x

SPECIFICATIONS

-2

-3

-4

-5

-8

-11

-12

QYT CB-27 CB Mobile radio AM/FM 12/24 4Watts 26.965-27.405MHz CITIZEN BAND ALL European MULTI-NORMS CB Mobile transceiver

FUNCTIONS & FEATURES

FTF LCD display

12/24V voltage

Full alloy body for heat radiation

Programmable keypad

CTCSS/DCS (Optional)

Wireless microphone control (optional)

Cell-phone APP control (optional)

AM/FM multi norms

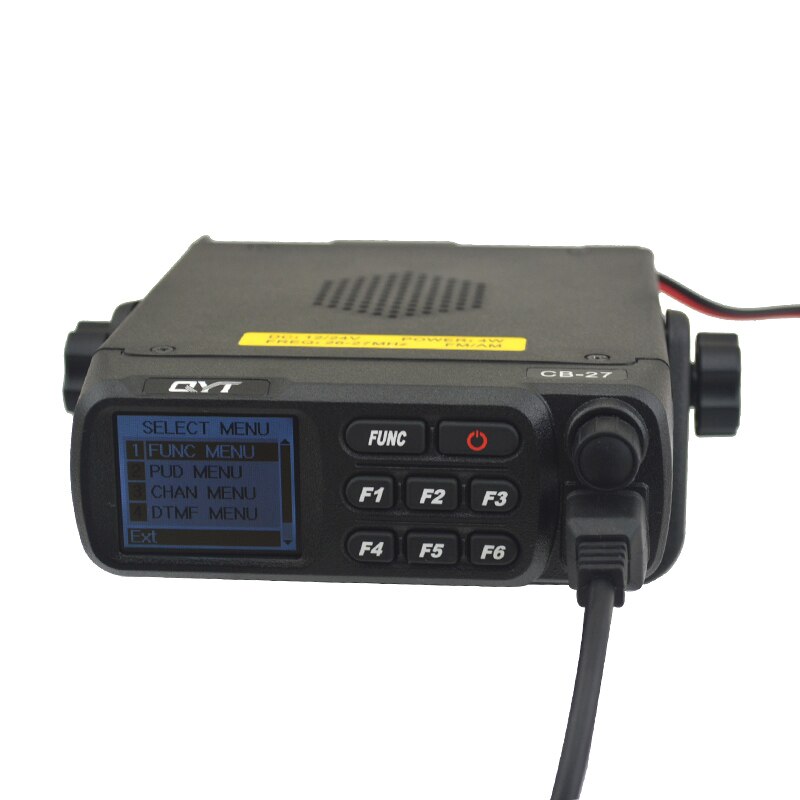

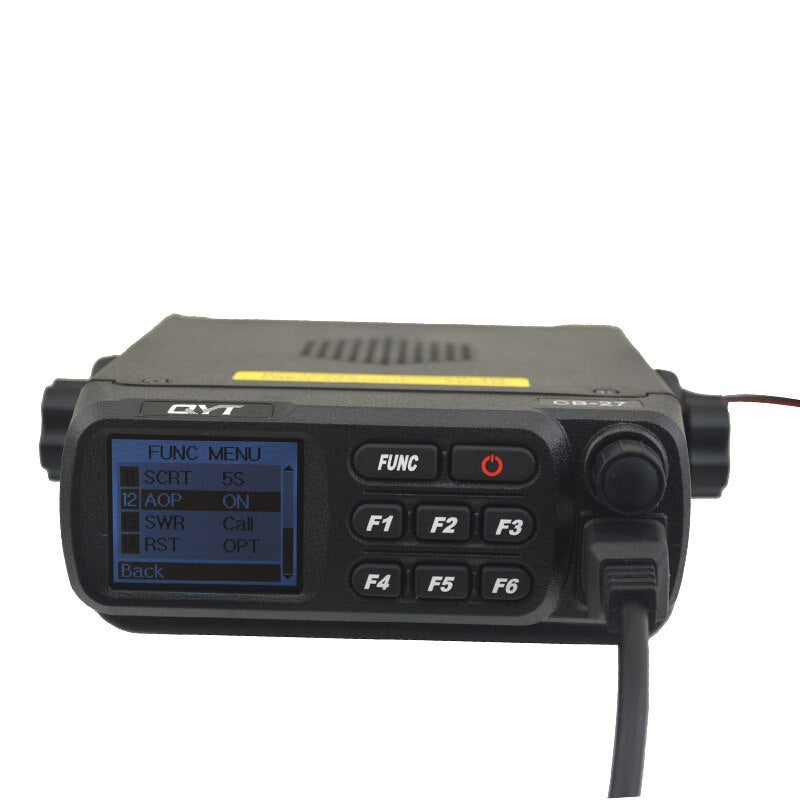

Flexible menu and programming software

DTMF

SQ,ASQ

SQ,ASQ open/close value setting

RF Gain

Scan

Dual watch

Programmable RB

CH9/19

NB/ANL

HI-CUT

Voltage protection

9 memory channel

TOT

Backlight control

Automatic power on

Keypad lock

SPECIFICATIONS



GENERAL

Modulation Mode

AM/FM

Frequency Range

26.965-27.405MHz

Frequency Tolerance

±5.0ppm

Input Voltage

12/24V

Dimensions (mm)

123(W) x 158(D) x 44(H)

Weight

Approx.660g

Frequency Control

PLL Synthesizer

Operating Temperature Range

-20°c ~ +55°c

Current Drain

Transmit

2A Max

Receiver

Squelched 0.3A

VOL Max

0.8A

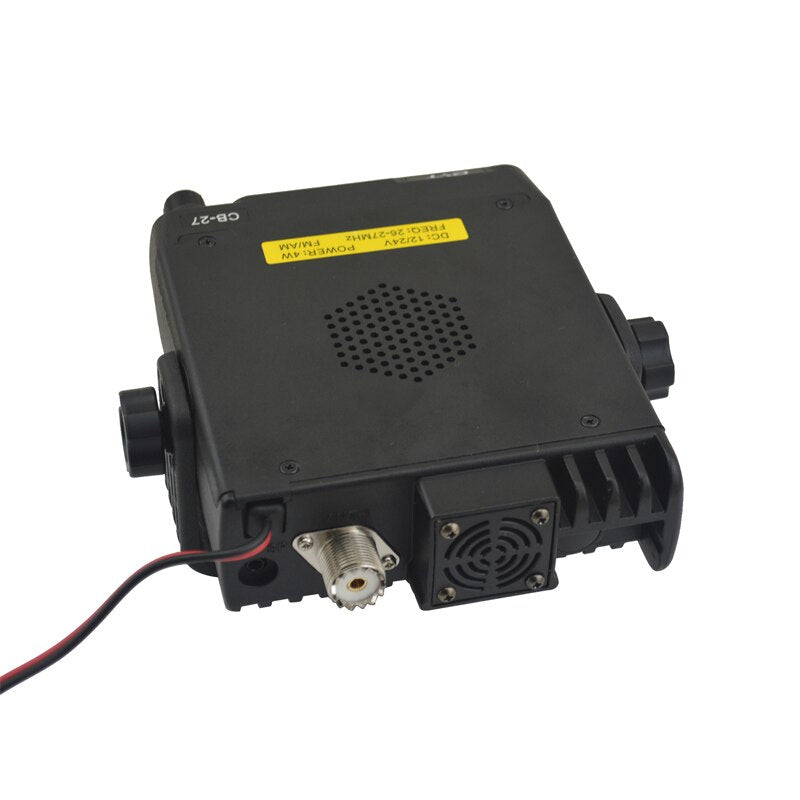

Antenna Conector

UHF,SO-239

TRANSMITTER

Output Power

4Watt FM/AM

Transmission interference

Inferior to 4nW(-54dBm)

Frequency Response

300-3000Hz

Modulated signal distortion

Inferior to 5%

Output Impedance

50 ohm

RECEIVER

Sensitivity

Less than 1uV for 10dB(S+N)/N

Image rejection

70dB

Adjacent channel rejection

60dB

IF Frequency

1st 10.695MHz

2nd 455KHz

Automatic Gain Control (AGC)

Less than 10dB change in audio

Output for inputs from 10 to 50000uV

Squelch

Less than 1uV

Audio Output Power

3 watt into 8ohm

Frequency Response

300-3000Hz

Package Contains:

1 x CB-27 CB band Mobile Transceiver body

1 x Speaker Microphone

1 x Plastic Bracket

1 x Fuse

2 x Fixing Screw sets

1 x ENG USERS' Manual
