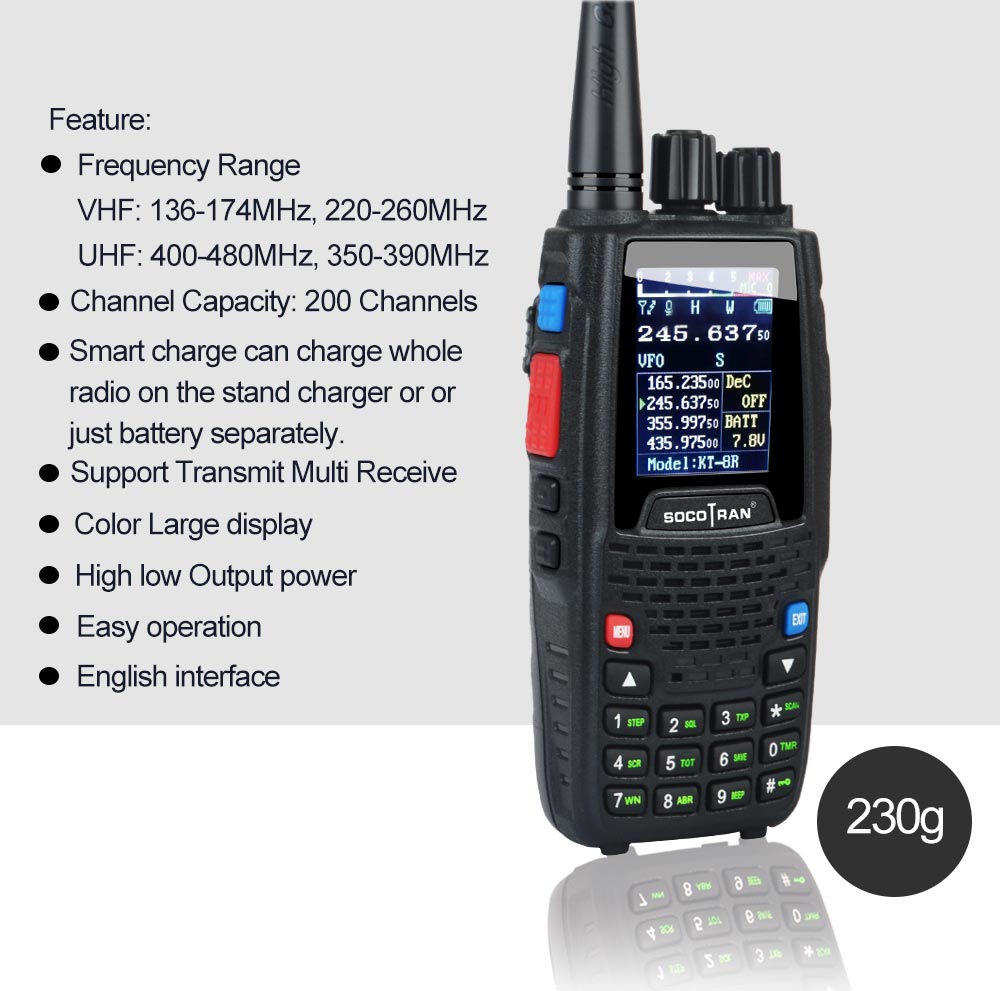

Frequency Range

VHF: 136-174MHz, 220-260MHz

UHF: 400-480MHz, 350-390MHz

Channel Capacity

200 Channels

Frequency Stability

±2.5ppm

Frequencyl Step

2.5K/5.0K/6.25K/10.0K//12.5K/25.0KHz

Working Voltage

7.4V DC±15%

Squelch Setup

Antenna impedance

50ohm

Operating Temperature

-20~+60℃

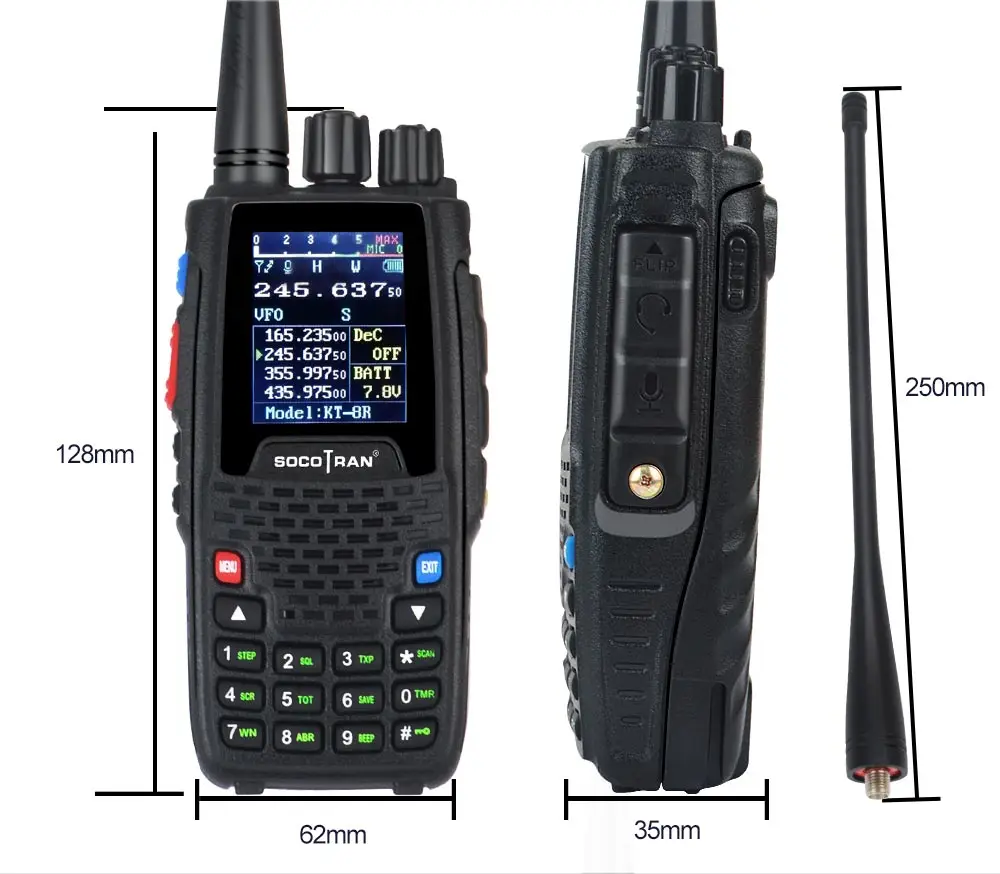

Dimension(W*H*D)

128*62*35mm

Weight

230g

Wide Band

Narrow band

Sensitivity

≤0.25μν

≤0.35μν

Channel chioce

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio response

+1~~3dB(0.3~3KHz)

+1~~3dB(0.3~2.55KHz)

Signal to noise ratio

≥45dB

≥40dB

Audio distortion

≤5%

Audio output power

≥1W±10%

Wide Band

Narrow band

Output power

4W

Modulation Mode

16KΦF3E

11KΦF3E

Channel Power

≥70dB

≥60B

Signal noise ratio

≥40dB

≥36dB

Parasitic harmonic

≥60dB

≥60dB

Audio response

+1~~3dB(0.3~3KHz)

+1~~3dB(0.3~2.55KHz)

Audio distortion

≤5%
