Main Features:
25W high power
25W/10W/5W Tri-power optional
Intelligent fan-cooled
4A large capacity Li-ion battery
Non-standard CTCSS(58 groups)/DCS(107 groups)
Three user-defined keys
Auto power off(APO)
Opening tone
Scan
Time out timer(TOT)
VOX
Specifications:
|
General |
|
|
Frequency Range |
UHF:400-480MHz |
|
Channel Capacity |
16 channels |
|
Antenna Impedance |
50Ω |
|
Frequency Stability |
±2.5ppm |
|
Operation Mode |
Simplex |
|
Weight |
550g |
|
Dimension(Exclude antenna) |
175x75x38mm |
|
Rated Voltage |
12.6V |
|

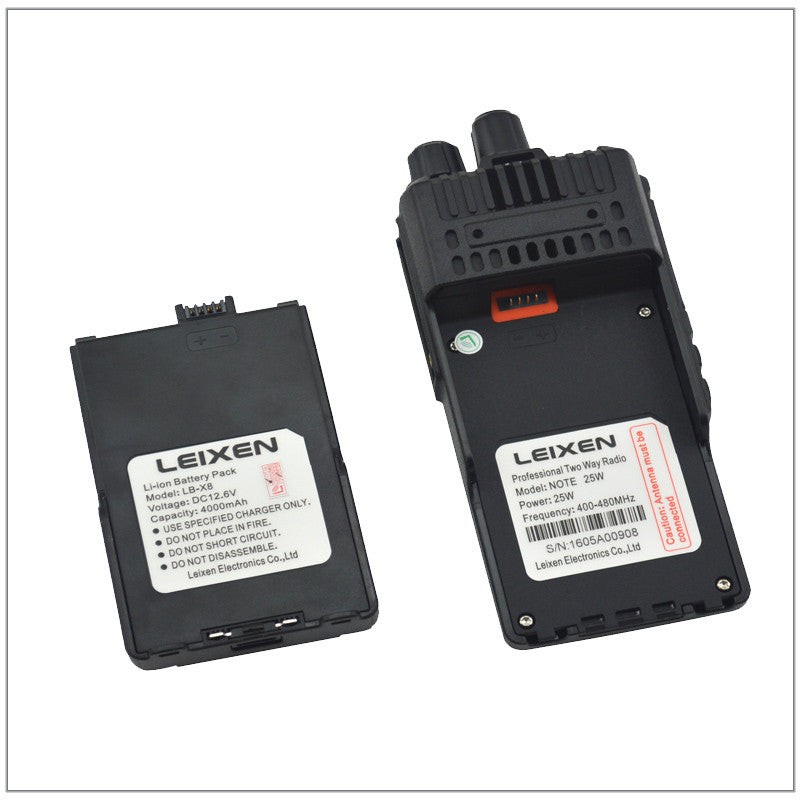

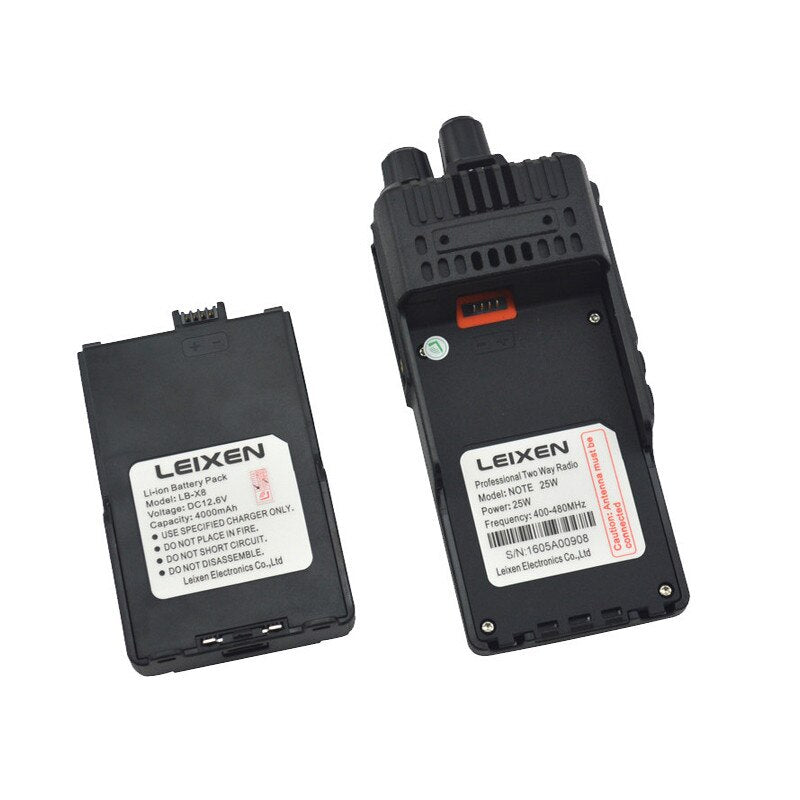

Battery |
4000mAh (Li-Ion) |
|
Transmitter |
|
|
Power |
5W/10W/25W |
|
Modulation |
16KØF3E / 11KØF3E |
|
Max.Freq.Deviation |
30dB |
|
Emission Current |
≤3.5A |
|
Receiver |
|
|
Sensitivity |
≤0.18µV |
|
Audio Power |
≥500mW |
|
Audio Distortion |
≤5% |
|
Inter modulation |
≥60dB / ≥55dB |
|
Channel Selectivity |
≥65dB / ≥60dB |
|
TX Current |
3.5A |
|
Modulation Type |
F3E |
