General |
|
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-520MHZ (TX/RX) |
|
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50Ω |
|
Operating Voltage |
DC 7.4V/1800 li-ion battery(Mark 4800MAH) |
|
Mode of operation |
Simple or semi-duplex |
|
Antenna : |
SMA -Female |
|

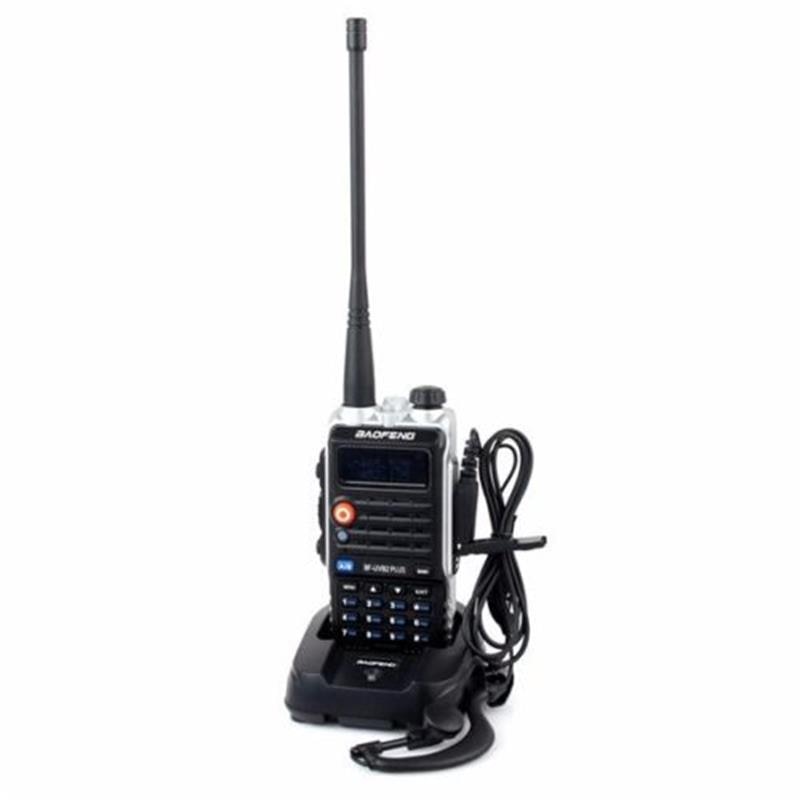

Earpiece / mic type : |
Kenwod Plug type |
|
Dimension(W x H x D) |
132 x 60 x 35 mm (not included antenna) |
|
Weight |
238g(including battery, antenna) |
|

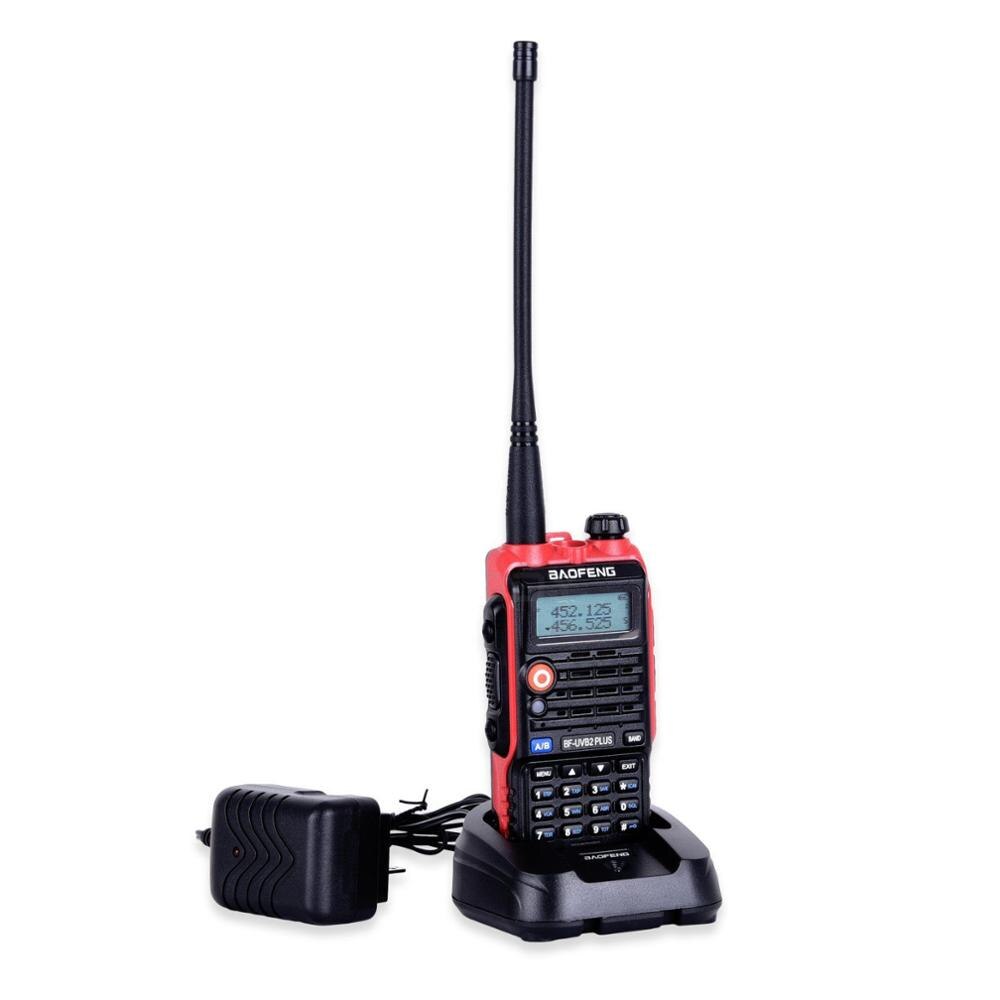

Power adapter |
Input: AC100-240V, 50-60Hz; |
|
Output: DC10V/500mA; |
|
|
Plug Type: US/EU |
|
|
Transmitter |
|
|
Output power |
5W(Mark 8W) |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
5kHz(Wide) / 2.5kHz(Narrow) |
|
Spurious Radiation |
7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
≤10% |
