General

Frequency Range:

136.00-174.00 MHz ,400.00- 520.00MHz

Storage Channel

128

Step Frequency

2.5/5/6.25/10/12.5/20/25KHz

Rated voltage

DC 7.4V

Frequency Stability

±2.5ppm

Work Temperature

-20 °C to +60°C

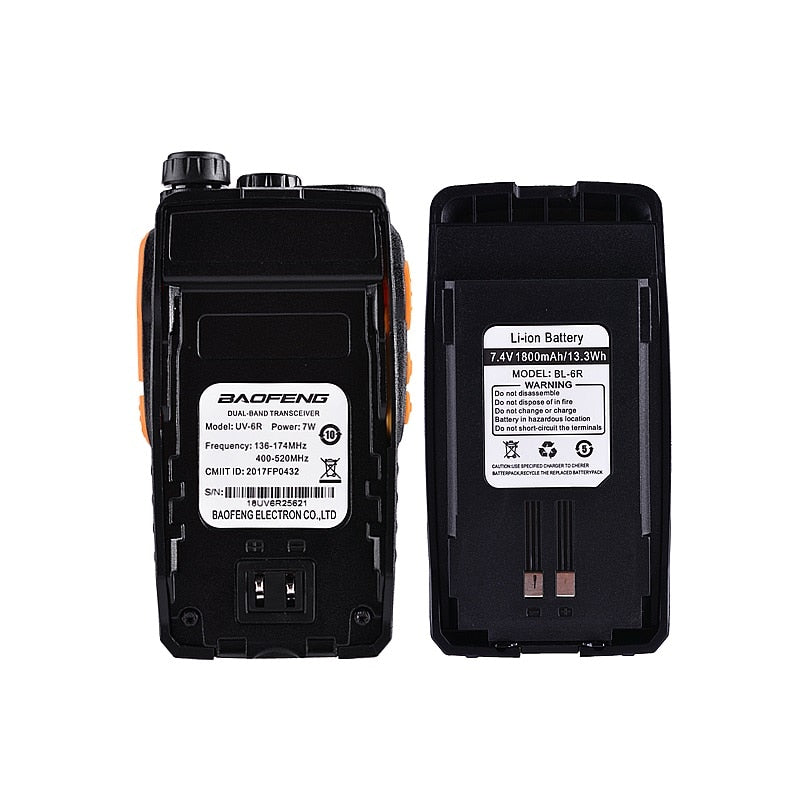

Battery Capacity

H-1800Mah MAX(Li-ion Battery)

Battery Life

About 12 Hours

Frequency Combination

PLL frequency synthesis

Antenna Impedance

50 Ω

Wok Mode

Same Frequency simplex Operation or Different Frequency simplex Operation

Dimension

110x58x32 mm (Excluded Antenna)

Weight

210g(including antenna and battery)

Transmitter

Output Power

5W/1W

Modulation Mode(W/N Band)

FM (F3E)

Maximum Frequency Deviation (W/N Band)

≤5 KHz

Spurious Power

≤7.5 µW

Adjacent channel power

≤-65dB/≤-60dB

Audio Distortion

<5 %

SNR

≥-45dB/≥-40dB

CTSCC/DCS Frequency Deviation(W/N Band)

0.7±0.1KHz (W), 0.4±0.1KHz (N)

Modulation Sensitivity

8-12mV

Transmitting Current

≤1500mA

Receiver

Sensitivity

<0.20 µ V (12dB SINAD)

Audio Power

1 W

Inter modulation Interference Resistance

≥65dB (W), ≥55dB (N)

Adjacent channel Sensitivity (W/N Band)

≥65dB (W), ≥55dB (N)

Audio Distortion

5%

Receiving Current

≤ 380m A
