Specifications:
|

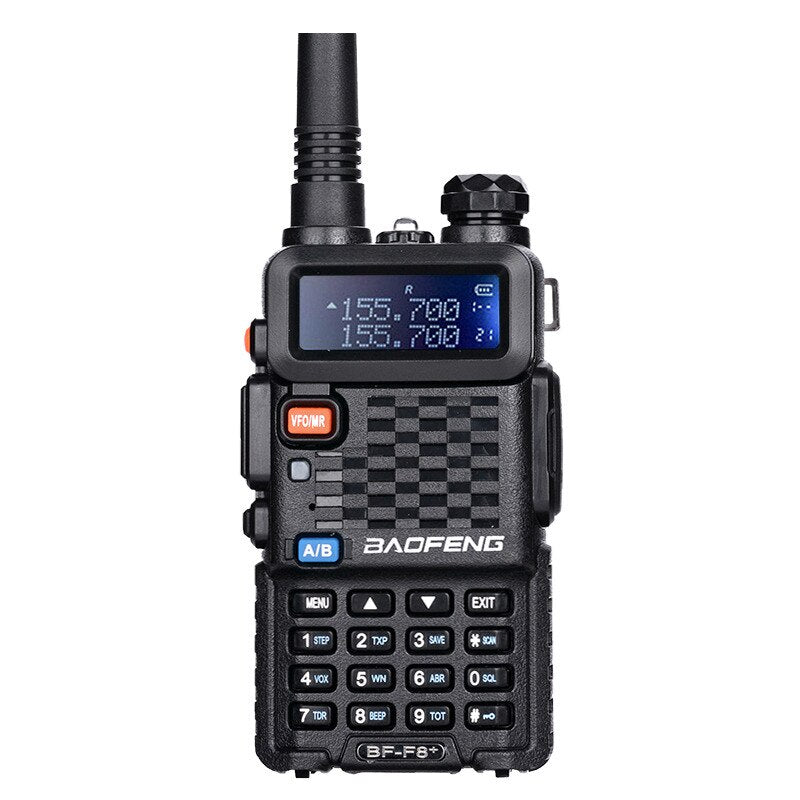

Item number |
BF-F8+ |
|
General |
|
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-520MHZ (TX/RX) |
|
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|

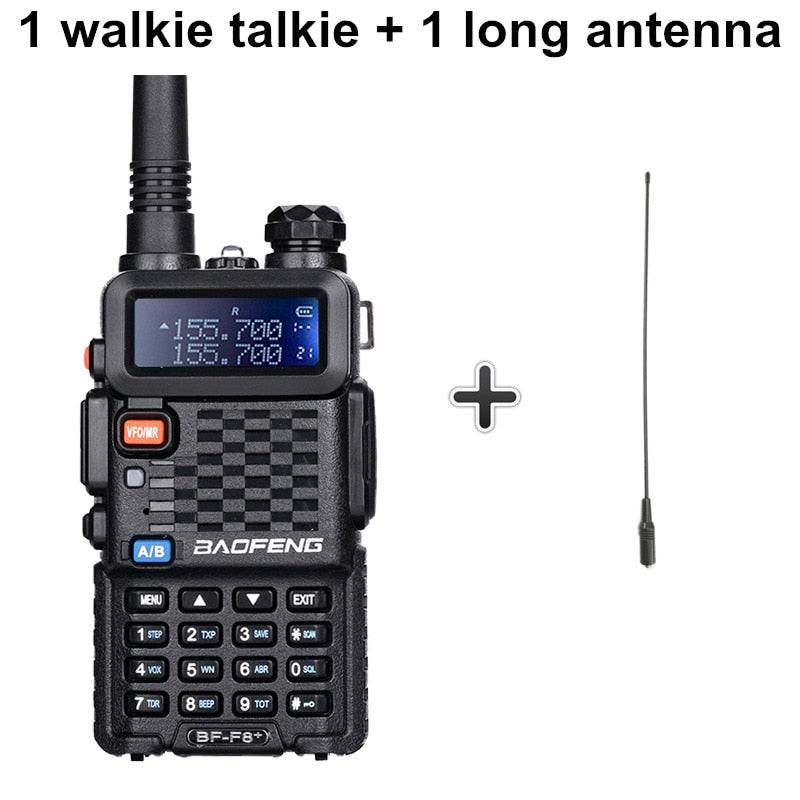

Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50Ω |
|

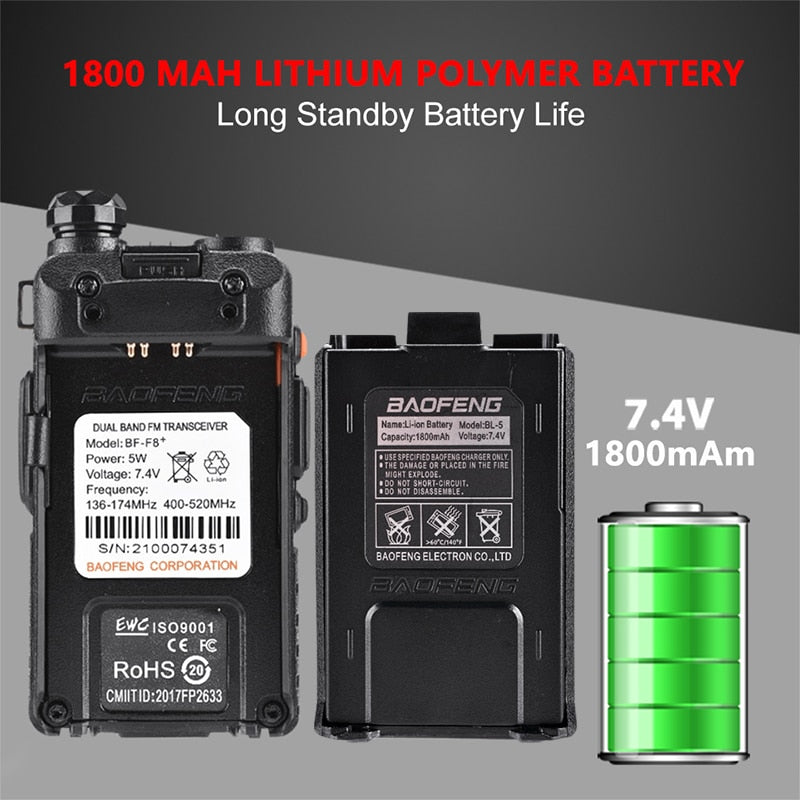

Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension(W x H x D) |
100 x 52 x 32 mm |
|
Weight |
250g(including battery, antenna) |
|
Transmitter |
|
|
Output power |
5W |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
<5kHz(Wide) / <2.5kHz(Narrow) |
|
Spurious Radiation |
<7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
<10% |
