GENERAL

Frequency Range

EU Version: VHF: 144-146MHz UHF: 430-440MHZ
USA Version: VHF: 136-174MHZ UHF: 400~490MHz

Number of Channels

200 channels

Channel Spacing

25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band)

Phase-locked Step

2.5KHZ, 5KHZ. 6.25KHZ, 10KHz, 12.5KHZ, 20KHZ, 25KHz,
30KHz,50KHz

Operating Voltage

13.8V DC ±15%

Squelch

Carrier/CTCSS/DCS

Frequency Stability

±2.5 ppm

Operating Temperature

-20℃~+60℃

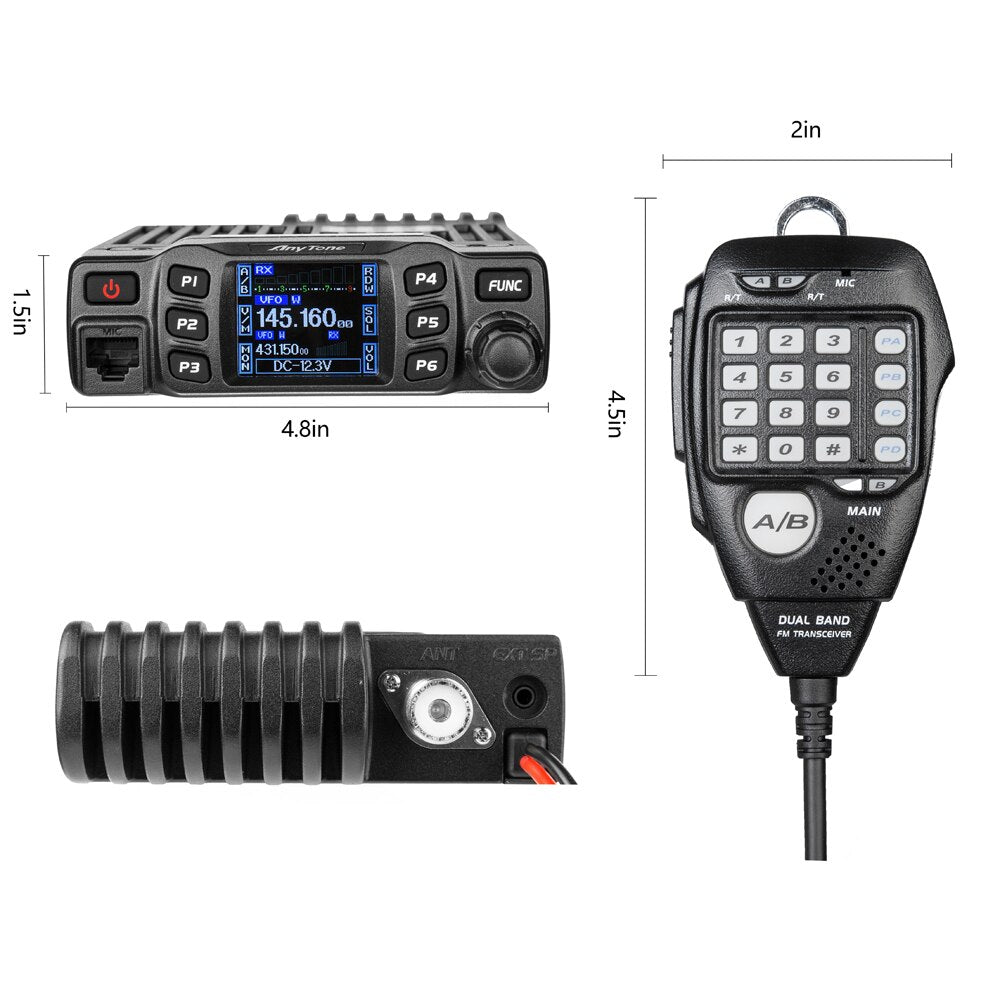

Dimensions(mm)

124 (W)x 163(D) x 39 (H)

Weight

about 0.64Kg

RECEIVER

Wide band

Narrow band

Sensitivity (12dB Sinad)

≤ 0.25μV

≤ 0.35μV

Adjacent Channel
Selectivity

≥60dB

≥60dB

Audio Response

+1～-3dB(0.3～3KHz)

+1～-3dB(0.3～2.55KHz)

Hum & Noise

≥45dB

≥40dB

Audio distortion

≤5%

Audio power output

>2W@8

TRANSMITTER

Wide band

Narrow band

Power Output

25W/15W/5W

Modulation

16KΦF3E

11KΦF3E

Adjacent Channel Power

≥70dB

≥60dB

Hum&Noise

≥40dB

≥36dB

Spurious Emission

≥60dB

≥60dB

Audio Response

+1～-3dB(0.3～3KHz)

+1～-3dB(0.3～2.55KHz)

Audio Distortion

≤5%
