All of our items are Brand New

Model

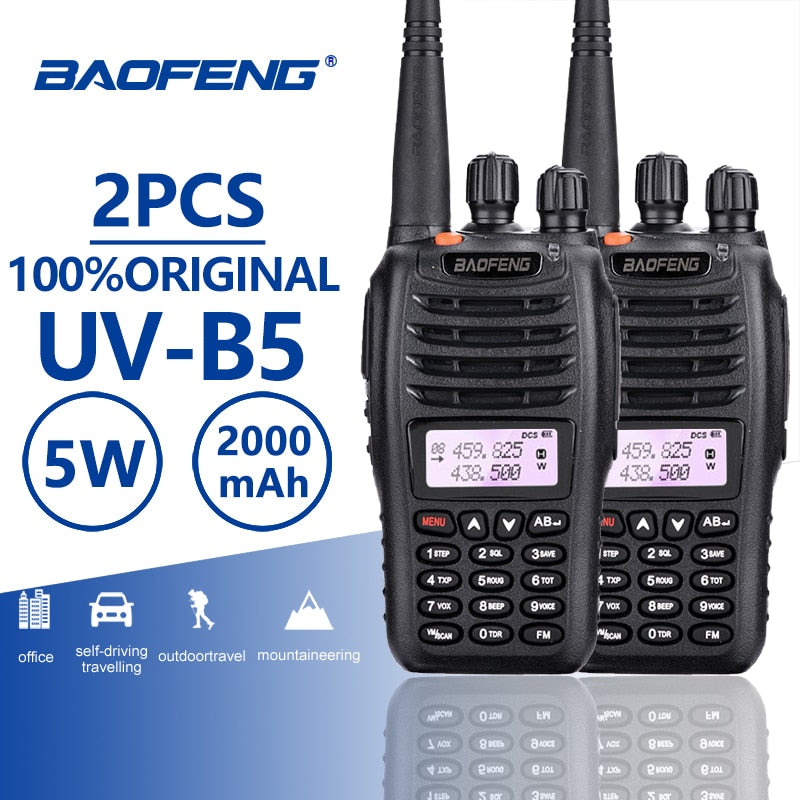

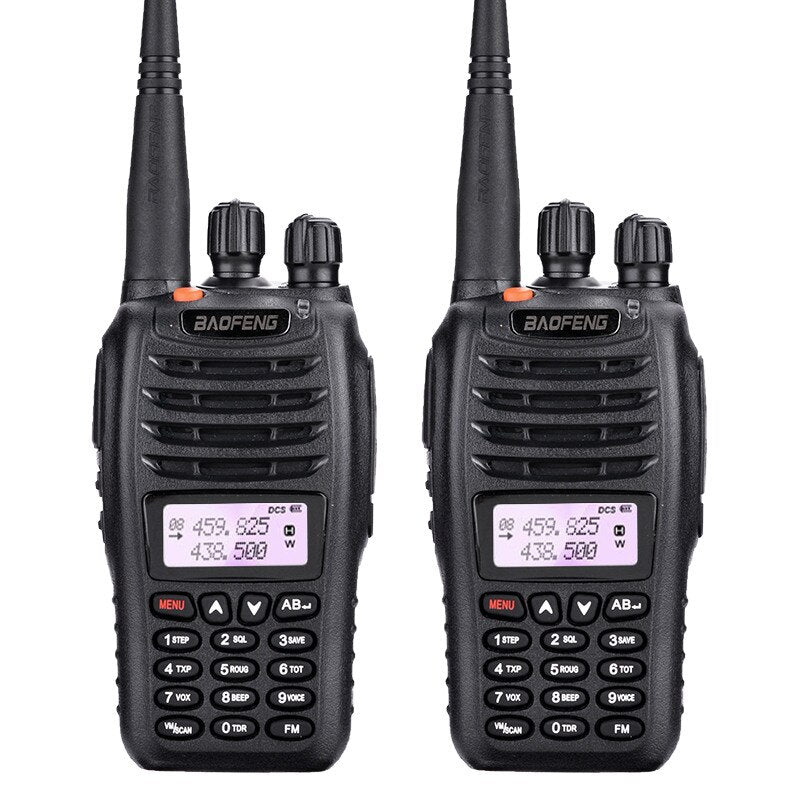

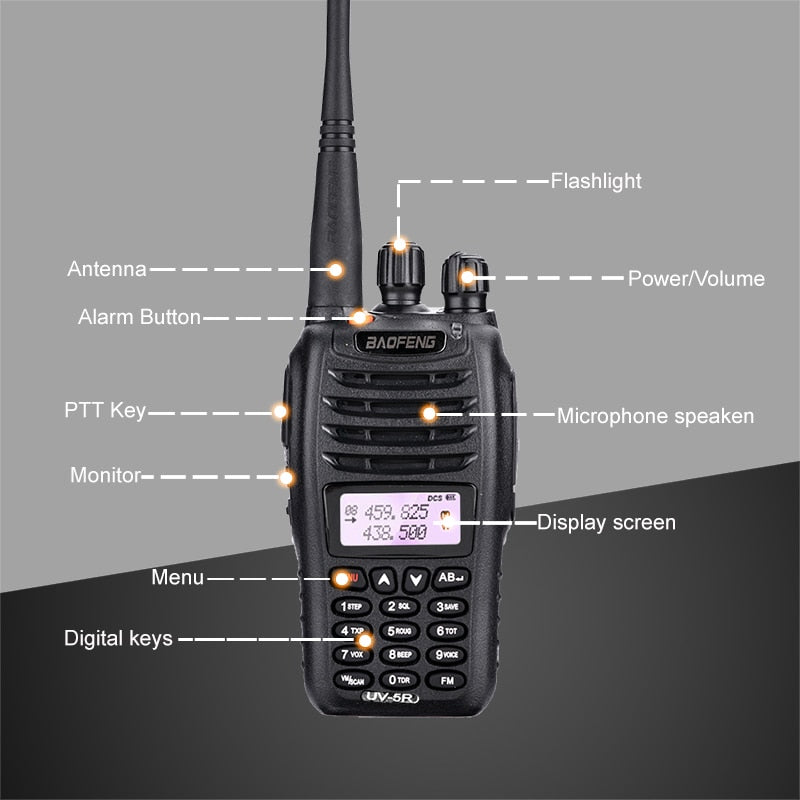

Baofeng UV-B5

Inductively loaded antenna

Yes

Antenna Impedance

50 ohm

Working temperature

-20 ~ +60°C

Rated Voltage

DC 7.4V ±10%

Max output power

5W

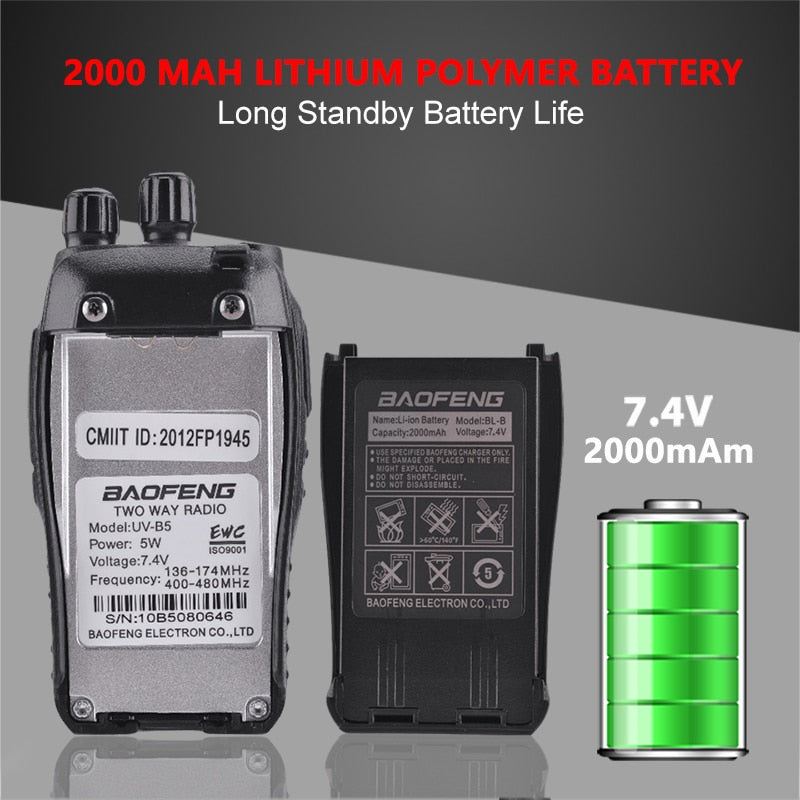

Battery type

Li-ion battery

Battery capacity

2000mAh

Dimension

38*58*120mm(Not Antenna)

Color

Black

Weight

210g(Included Antenna)

Dual band or Single band

Dual band

Dual frequency or Single frequency

Dual frequency

Frequency Range

UHF: 400-480MHz +
VHF: 136-174MHz

FM radio

NO

Memory Channels

99 groups

Working manner

Simple or semi-duplex

Standby time

100 h

Channel step

5/6.25//10/12.5/20/25kHz

Wide/Narrow Band

25kHz/12.5kHz

DCS/CTCSS codec

104-DCS, 50-CTCSS

Busy channel lock

Yes

Channel mode display

Yes

VOX function

Yes

Tone tail eliminate

Yes

Scanning function

Yes

Monitor function

Yes

TOT function

Yes

DTMF tone

Yes

Lower power/lower voltage prompt

Yes

Auto-power off

Yes

Single call / group call

Yes

PTT-ID function

Yes

Reverse Frequency

Yes

Alarm function

Yes

Power saving function

Yes

High/Low TX power selectable

Yes(5W/1W)

Chinese & English voice prompt

Yes

PC software programmable

Yes

Frequency stability

2.5ppm

Modulation ( wide band, narrow band )

F3E

Max frequency deviation ( wide band, narrow band )

<±5kHz/<±2.5KHz

Spurious radiation

<7.5µW

Sensitivity

0.2µV(12dB SINAD)

Audio Power

1W

Intermodulation

65dB

Adjacent channel selectivity

65dB/60dB

Spurious rejection

65dB

Spurious current

<380mA
