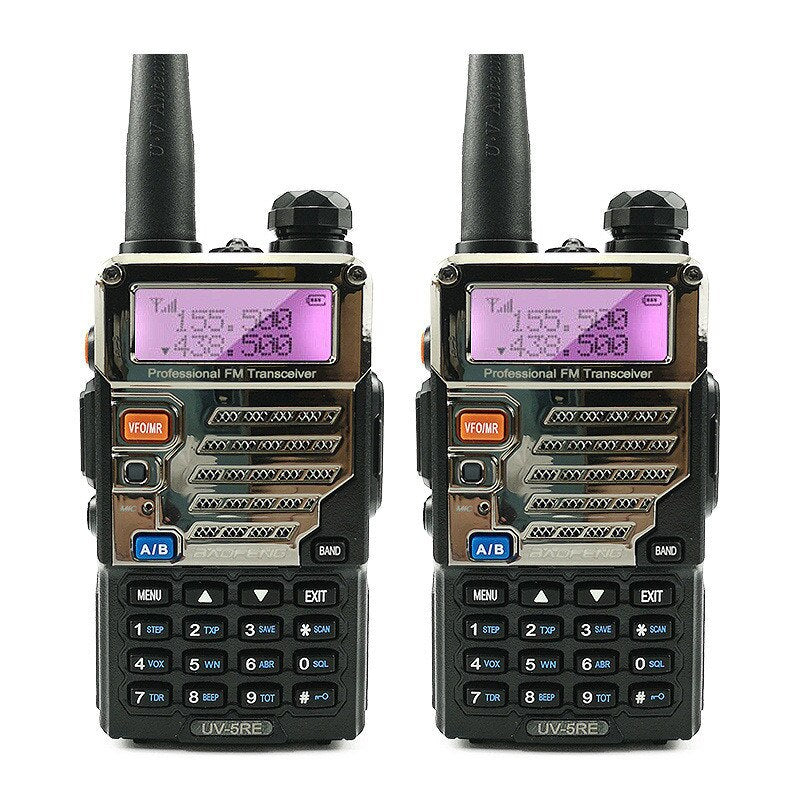

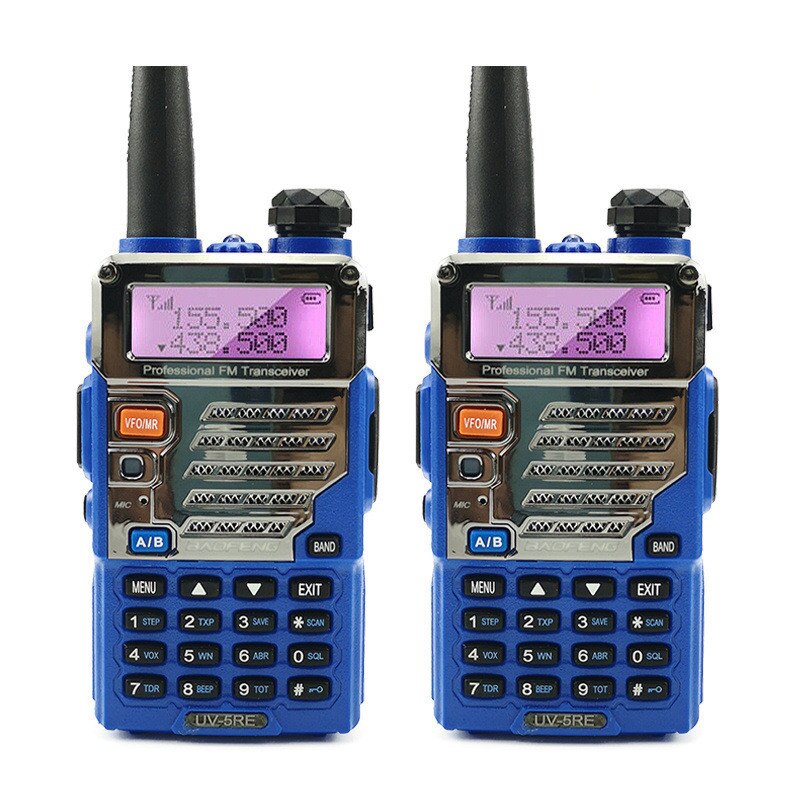

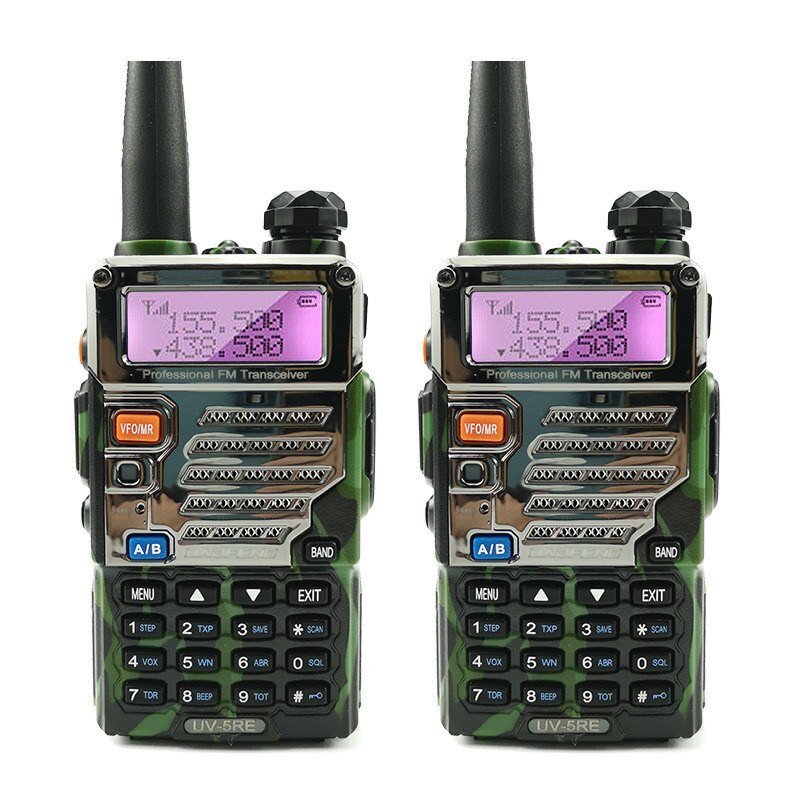

Dual-band handheld transceiver with display function menu on the display “LED”

Commercial FM radio receiver (65MHz-108MHz)

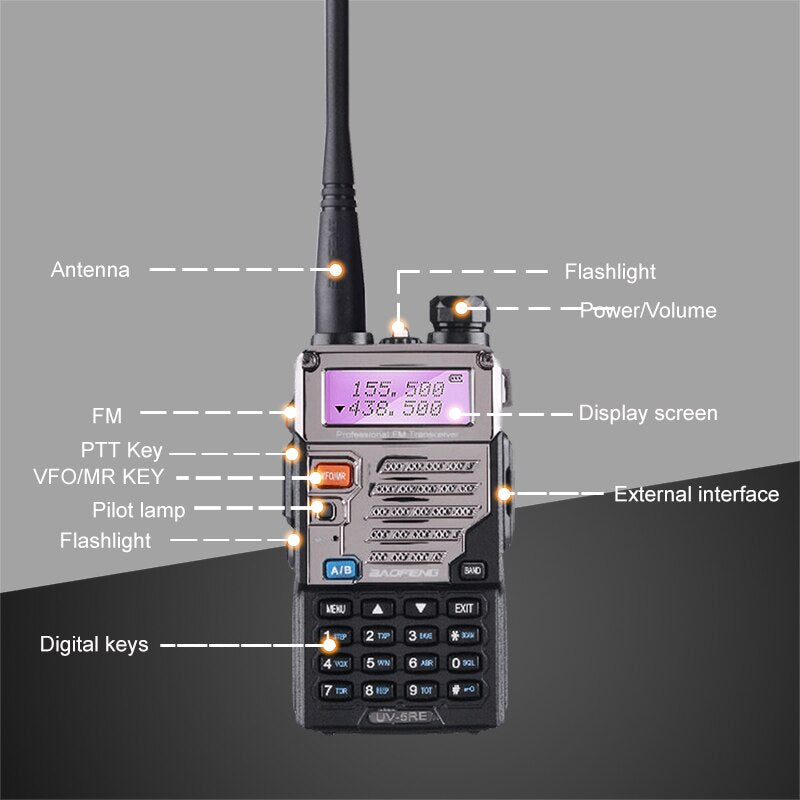

Built-in LED flashlight

DTMF encoded

Built-in RX CTCSS/DCS scan

Function VOX

Alarm function

Broadband/narrowband selectable

Function beep on the keyboard

Dual Watch/dual Reception

Crossband reception/transmission

Function OFFSET

Tone end of transmission

Battery saving function SAVE

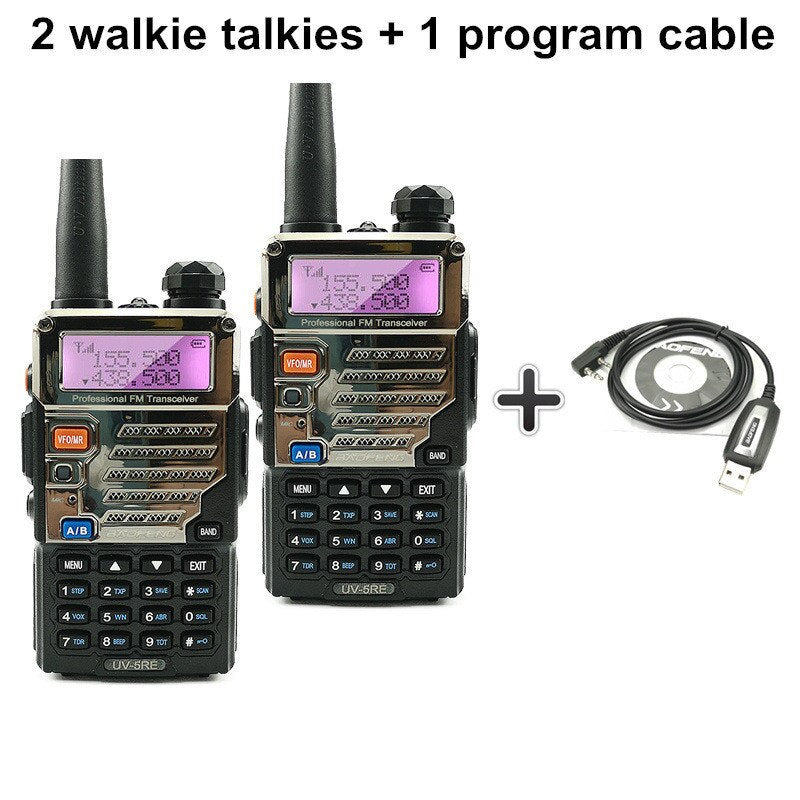

Programmable by PC

Built-in key lock

GENERAL

Frequency range

65-108Mhz(only for FM)

VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)

Memory channels

Up to 128 channels

Frequency stability

2.5ppm

Frequency step

2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz

Antenna impedance

50Ω

Operating temperature

-4οF to +140οF

Supply voltage

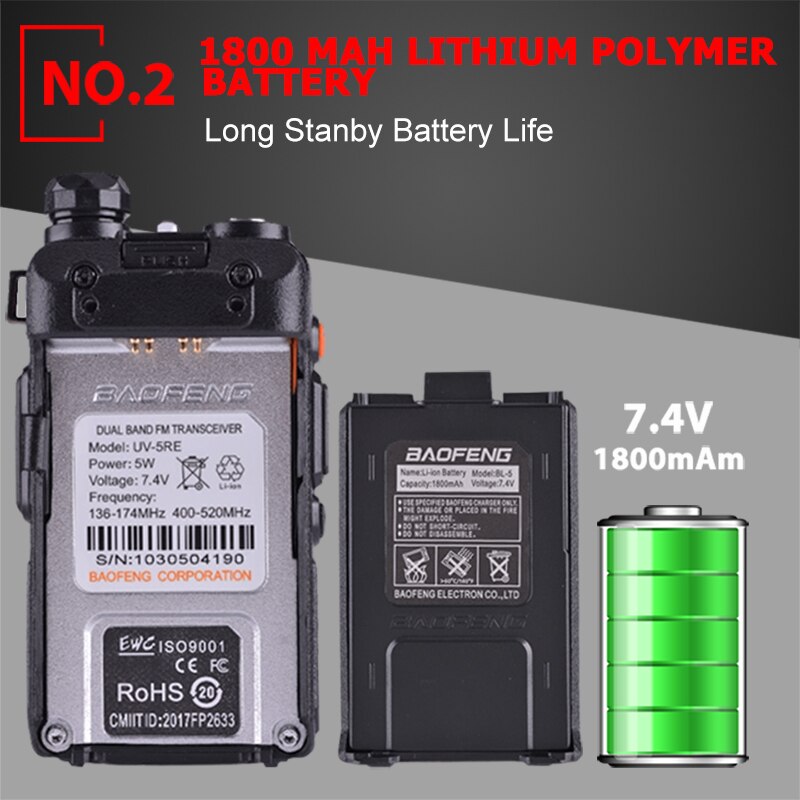

Rechargeable Lithium-Ion mAh7.4V

Consumption in standby

≤75mA

Consumption in reception

380mA

Consumption in transmission

≤1.4A

Mode of operation

Simplex or semi-duplex

Duty cycle

03/03/54 min.(Rx/Tx/Standby)

Dimensions

58mm*110mm*32mm

Weight

130g(approximate)

TRANSMITTER

RF power

5W

Type of modulation

FM

Emission class

16KΦF3E/11KΦF3E(W/N)

Maximum deviation

≤±5kHz/≤±2.5kHz(W/N)

Spurious emissions

<-60dB

RECEIVER

Receiver sensitivity

0.2μV(at 12dB SINAD)

Intermodulation

60dB

Audio output

1000mW

Adjacent channel selectivity

65/60dB
